SPECIFICATIONS

Hign-concerned Chemical: None

Description

Application

It is suitable for use on construction sites, in the building industry, on farms and gardens for orchard planting, and for drilling holes quickly in ordinary soil.

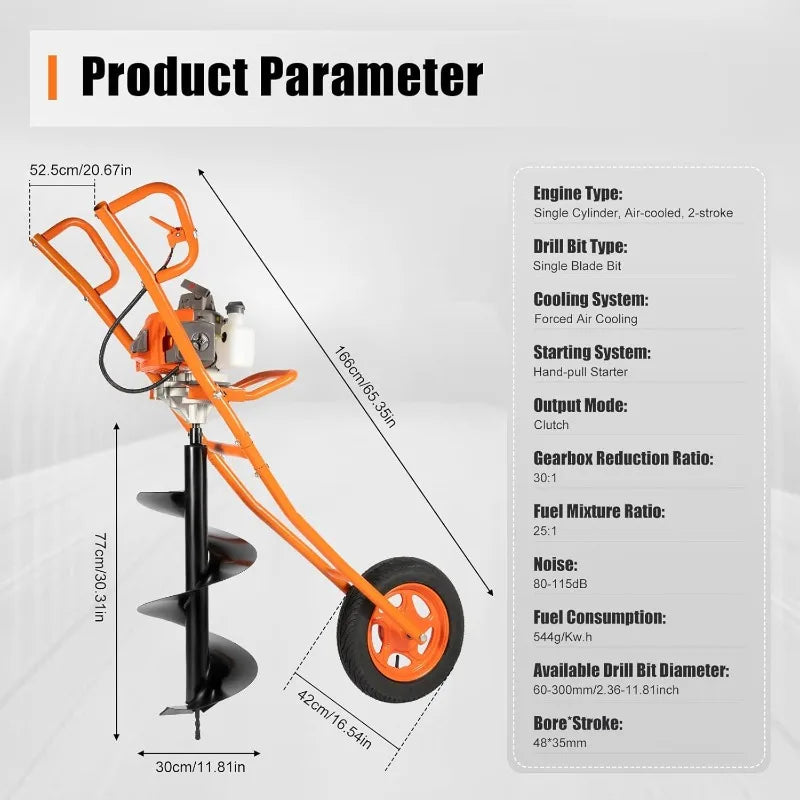

Specification

Color: Orange

Material: Cast Iron, Aluminum, Alloy Steel, Rubber

Process: Painting

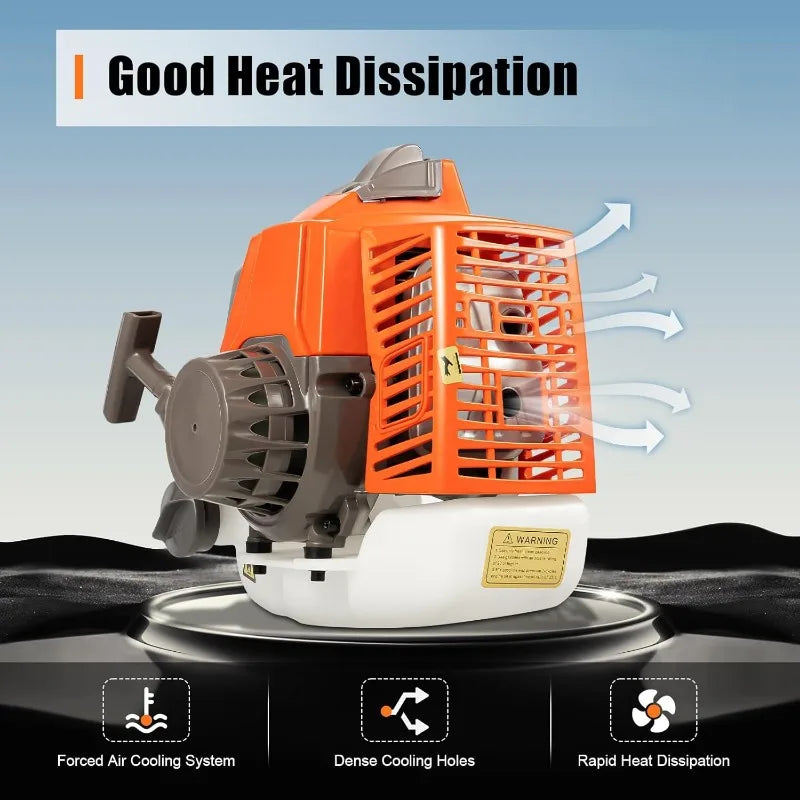

Engine Type: Single Cylinder, Air-cooled, 2-stroke

Drill Bit Type: Single Blade Bit

Starting System: Hand-pull Starter

Clutch Type: Centrifugal Clutch

Assembly Required: Yes

Displacement: 63CC

Power: 2.2kW

Speed: 8800±300rpm

Gearbox Reduction Ratio: 30:1

Fuel Mixture Ratio: 25:1 (Gasoline: Two-stroke FC Grade Engine Oil )

Noise: 80-115dB

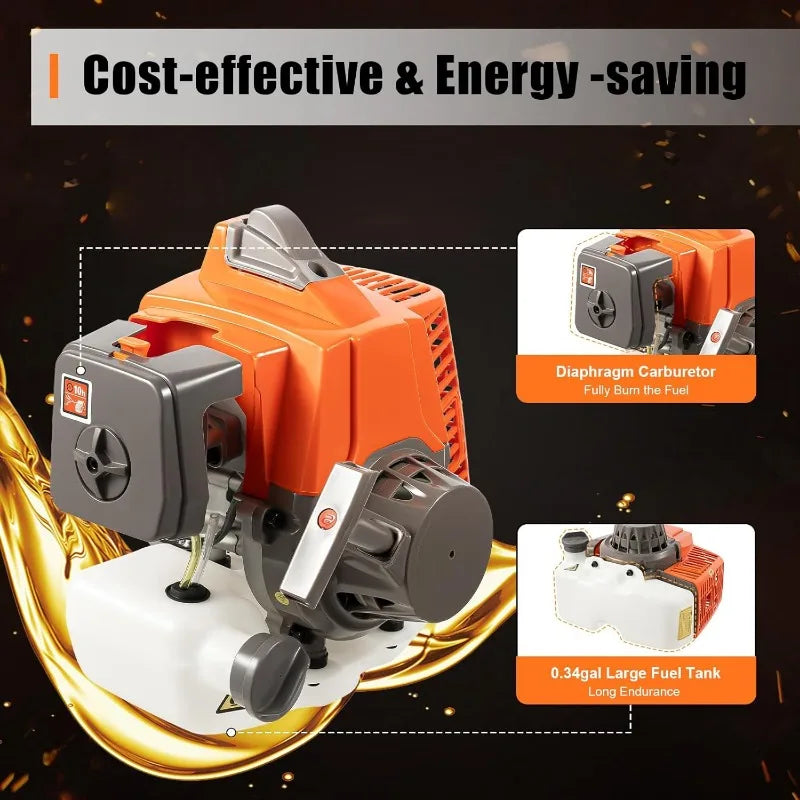

Fuel Tank Capacity:1.3L/0.34Gal

Fuel Consumption: 544g/Kw.h

Available Drill Bit Diameter: 60-300mm/2.36-11.81in

Bore*Stroke: 48*35mm

Handle Spacing: 51cm/20.1in

Wheel Diameter: 40.5cm/15.9in

Product Overall Length: 169cm/66.5in

Digging Machine Net Weight (Without Drill Bit): 17kg/37.5 lbs

Digging Machine Gross Weight (Without Drill Bit): 19kg/41.9 lbs

Digging Machine Package Size (Without Drill Bit): 81*39.5*35cm/31.9*15.6*13.8inch

Drill Bit Net Weight: 4.6kg/10.1 lbs

Drill Bit Gross Weight: 5.6kg/12.4 lbs

Drill Bit Package Size: 80.5*29.5*29.5cm/31.69*11.61*11.61in

Drill Bit Diameter: 30cm/11.81in

Drill Bit Length: 80.8cm/31.8in

Package Included

1* Digging Machine

1* Drill Bit

1* Fuel Mixing Bottle

1* Product Illustration

2* English Manuals

All Accessories for Assembly

Notes

1. Please note that it is not suitable for drilling holes in sand and gravel mixed soils, ice, or sandy clay soils.

2. Please add gasoline and engine oil into the fuel tank respectively, cover the rear cover, and shake well. Please use two-stroke FC grade engine oil, otherwise, it will cause damage to the engine.

3. Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.

4. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
