SPECIFICATIONS



Hign-concerned Chemical: None



Model Name: B601-084-



Electric folding tricycle



Features:



1: Aluminum alloy one-piece wheel hub: one-piece molding, with stronger pressure resistance and no deformation.

2: Sealed middle axis: not easy to damage, good rotation effect, maintenance-free and worry-free.

3: Comfortable saddle and back seat: double spring shock absorption design, three-dimensional sponge filling, very comfortable, no fatigue after sitting for a long time.

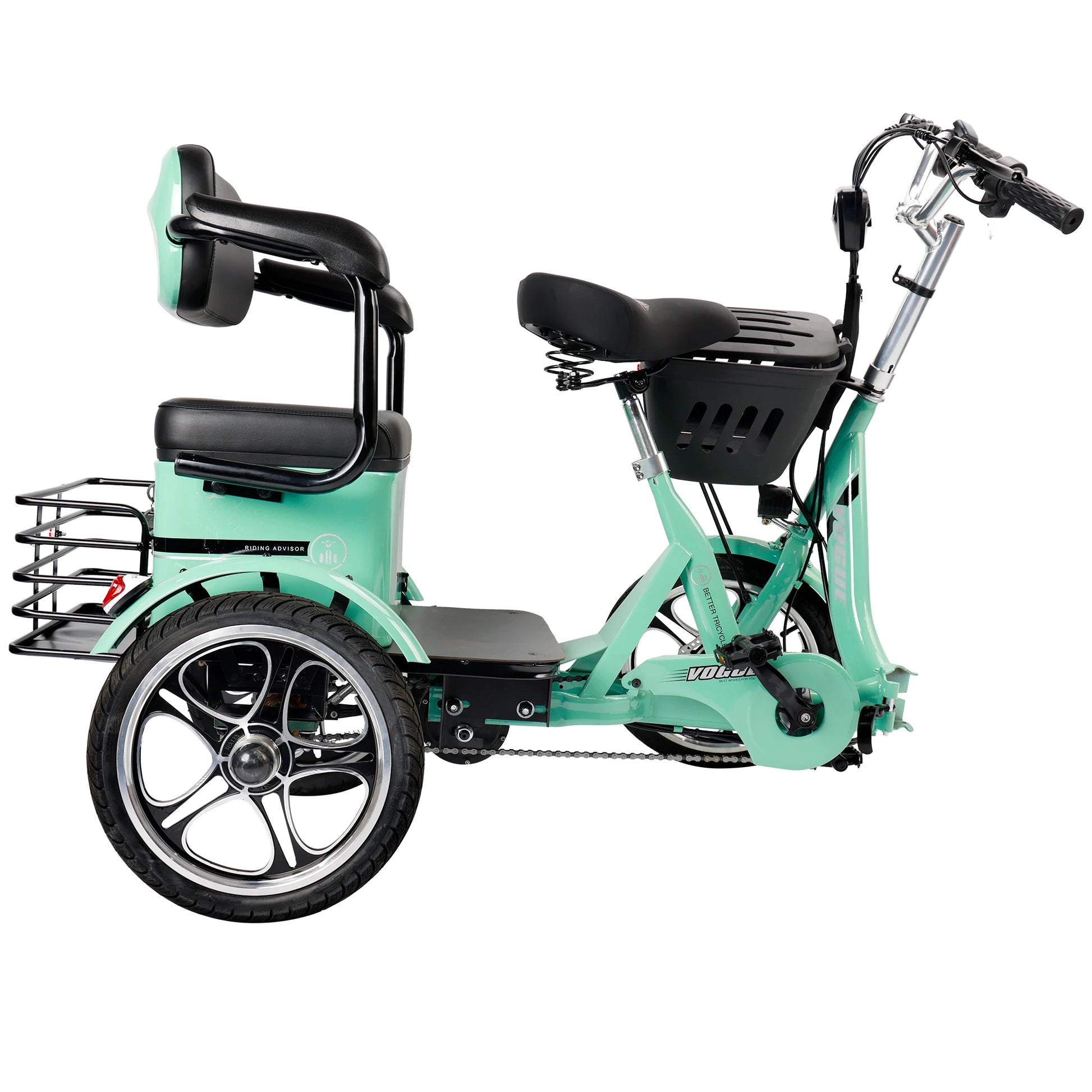

4: Quick-release folding design: easy to disassemble and assemble, easy to store and transport, save space, and can be placed in the trunk of the car after folding.

5: There are two modes, speed limit and normal, and the two modes have three different speeds to switch between, which meets the needs of daily riding for the elderly.

How to modify the speed limit and normal mode: find the speed limit plug, plug it in for the speed limit mode, and unplug it for the normal mode.

6: With pedal assist function, it reduces the burden on the rider and makes riding easier.

7: Easy to install, if you need installation instructions, please consult customer service.



Specifications:



Tires: thickened tires

Wheels: 16 inch aluminum alloy rims

Brakes: front mechanical disc brakes and rear oil brakes

Frame: high carbon steel

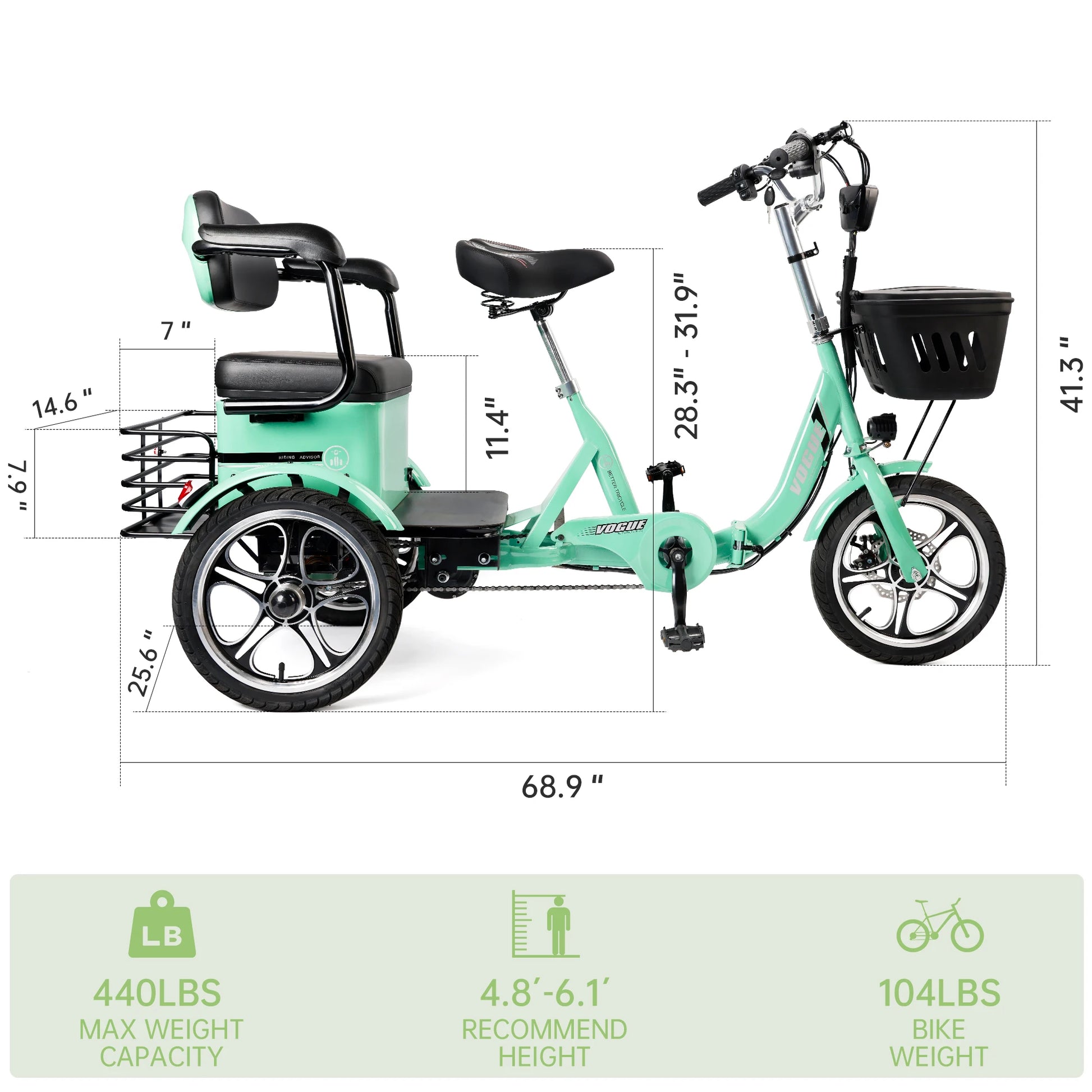

Vehicle size: 70.1"X38.2"X26.4"

Folded size: 50.4"X36.2"X26.4"

Trike Weight: 47KG/103LBS

Climbing ability: <30°

Motor: 400W

Battery: 48V12AH

Charger: 48V3A

Load-bearing capacity: 200KG/440LBS

Maximum speed: 21-23KM/H

Endurance:

About 45KM (Max. speed 18KM/H)

About 55KM(Min. speed 6KM/H)

Note:The mileage will vary under different weights, different speeds, and different road conditions.

Charging time: 5 hours



Three-speed transmission:



Speed limit mode (after plugging in the speed limit device):

1st gear: 6KM/H

2nd gear: 9KM/H

3rd gear: 12KM/H



Normal mode (after unplugging the speed limit device):



1st gear: 14KM/H

2nd gear: 19KM/H

3rd gear: 23KM/H



WARNING:

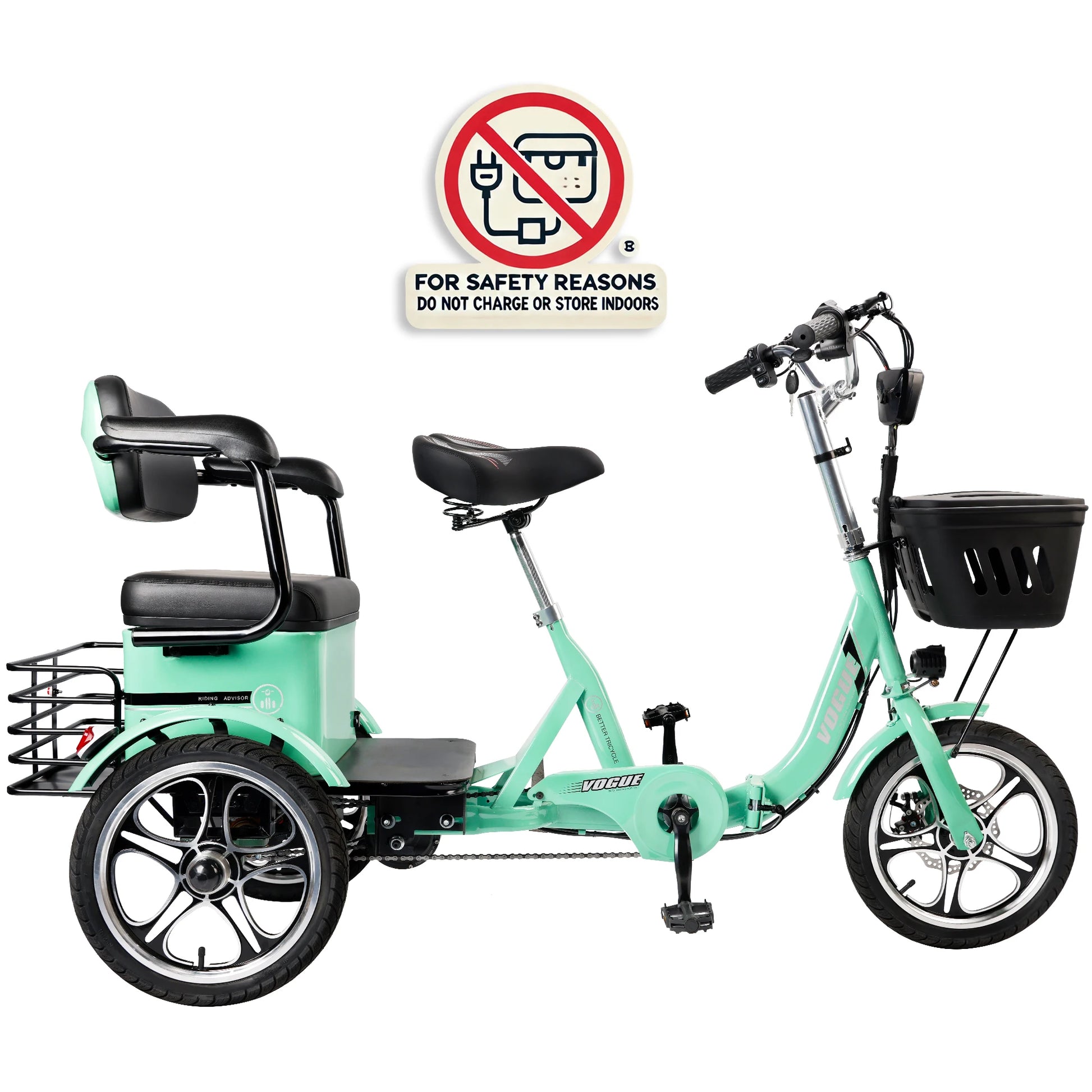

For your safety, please do not store or charge your bicycle indoors.



Package includes:



1x electric tricycle

1x charger
