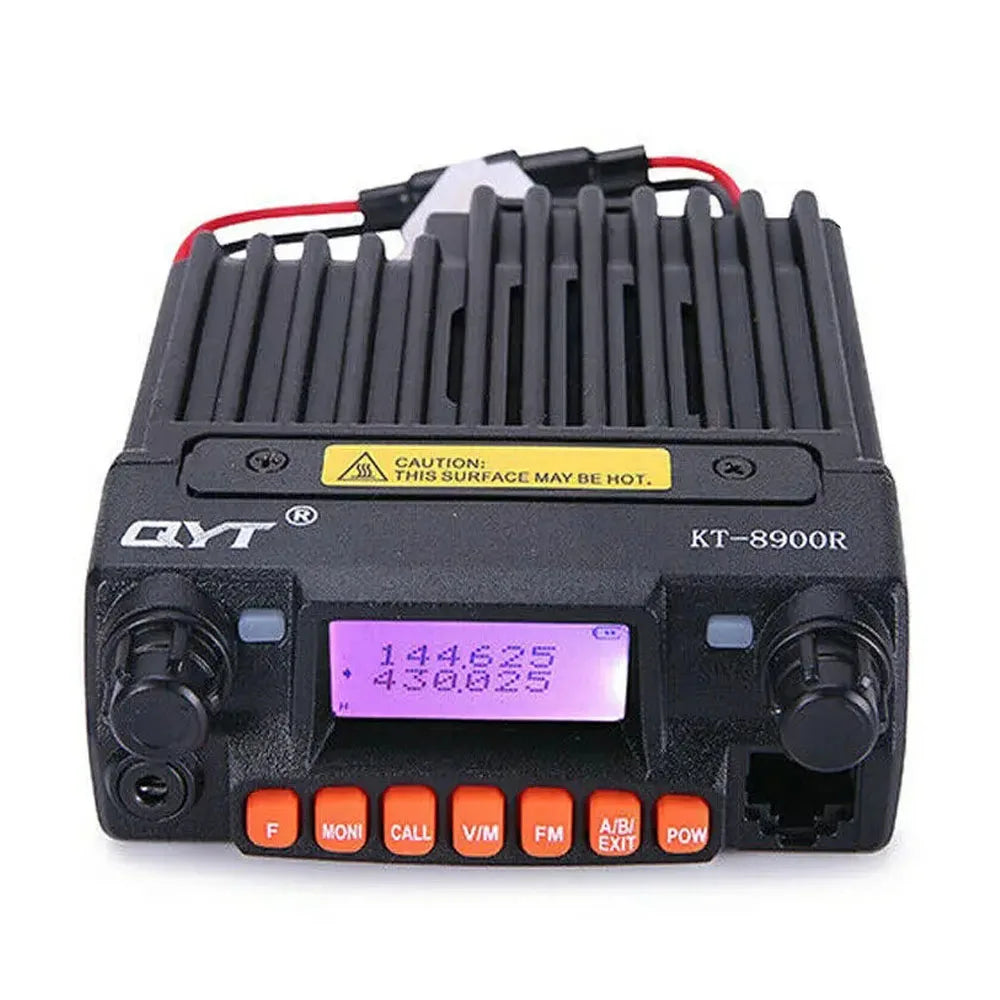

KT-8900R 25W Long Range Walkie Talkie VHF UHF Transceiver 136~174&240-260&400~480MHz Mini Mobile Two Way Radio

$0.00 USD

~~$0.00 USD~~ $0.00 USD

Sale Sold out

Shipping calculated at checkout.

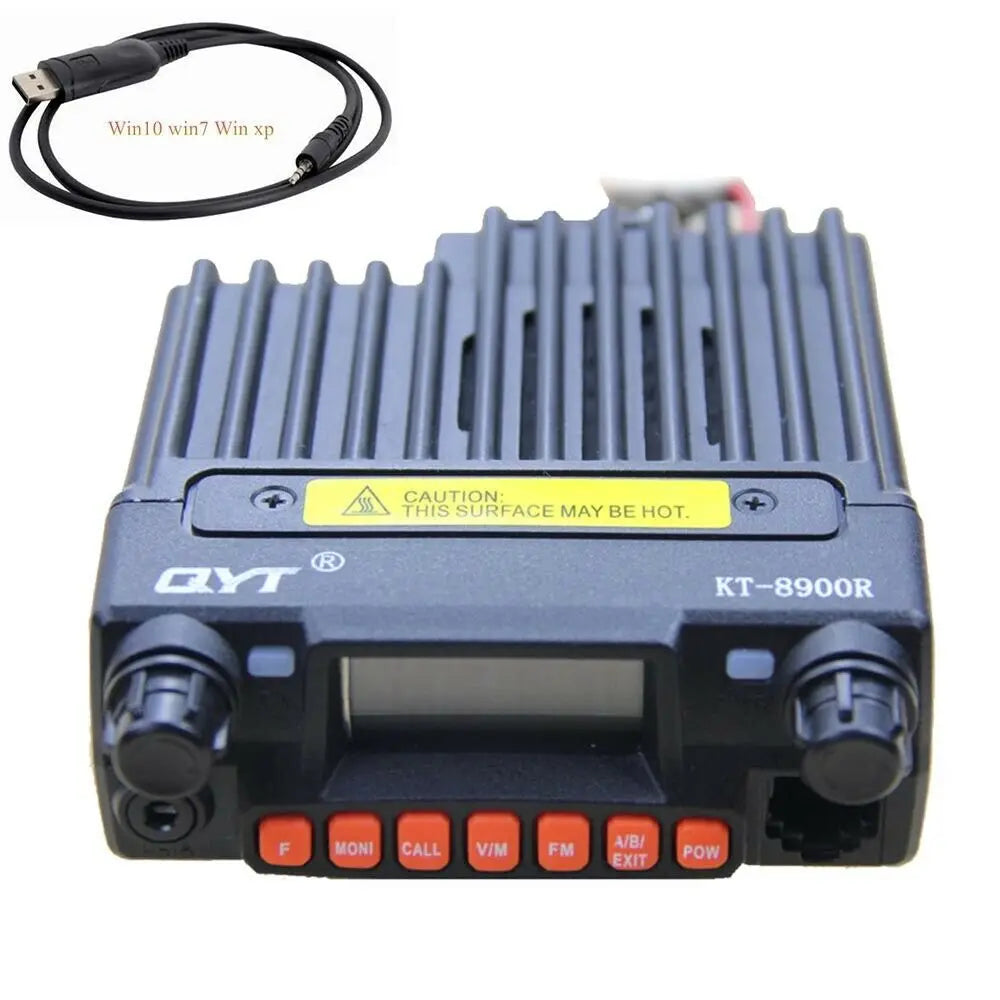

Color KT-8900R-usb KT-8900R black

Ships From United States

Quantity

SPECIFICATIONS

Battery Capacity(mAh): -

Waterproof / Water-Resistant: IP55

Maximum Range: 10km-50km

Model Number: KT-8900R

Is_Display: Yes

Walkie Talkie Type: Car

Hign-concerned Chemical: None

Output Power(w): 10w-25w

Material: Plastic+metal

Storage Channel: 200

Frequency Range: VHF:136-174MHz 240-260MHz UHF:400-480MHz

Dimensions: 98 ( w ) x 35 ( h ) x 118 ( d ) mm

Certification: CE

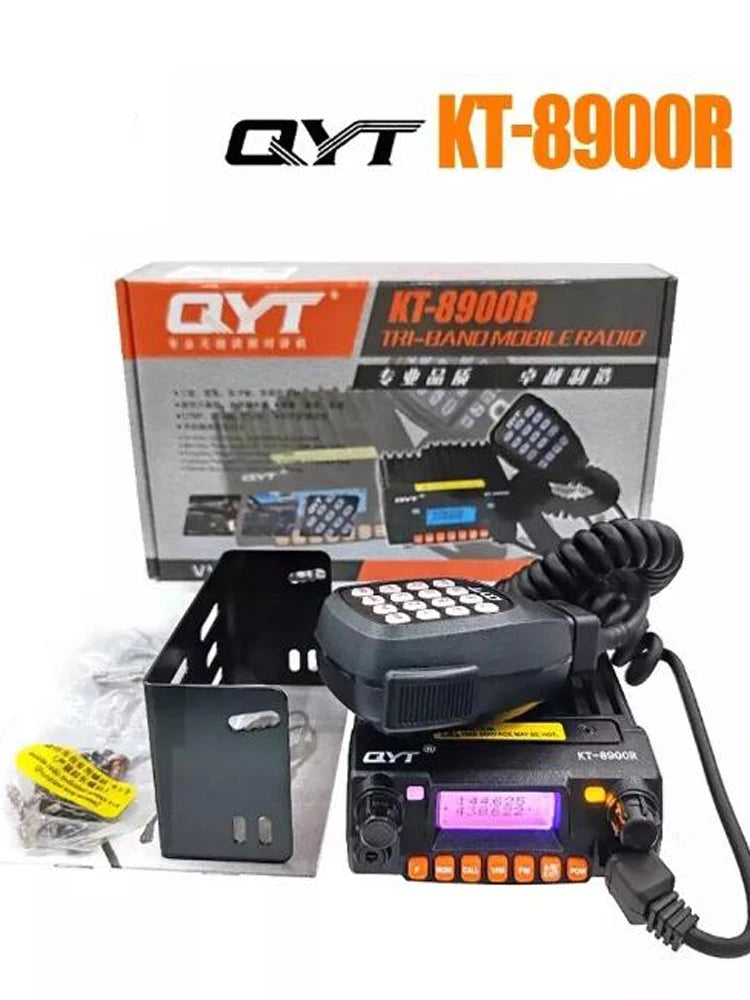

QYT KT-8900R 25W Mini Mobile Radio Tri Band 136~174MHz &240-260MHz& 400~480MHz Ham radio

Note: if you need the software, please contact us.

Product features :
1. KT -8900 QYT enhanced version
2. Tri - band VHF: 136-174 MHz, 240-260 MHz UHF : 400-480 MHz, FM: 76-108.900 Mhz
3. Comes with 2-Tone , 5-Tone , DTMF Functions

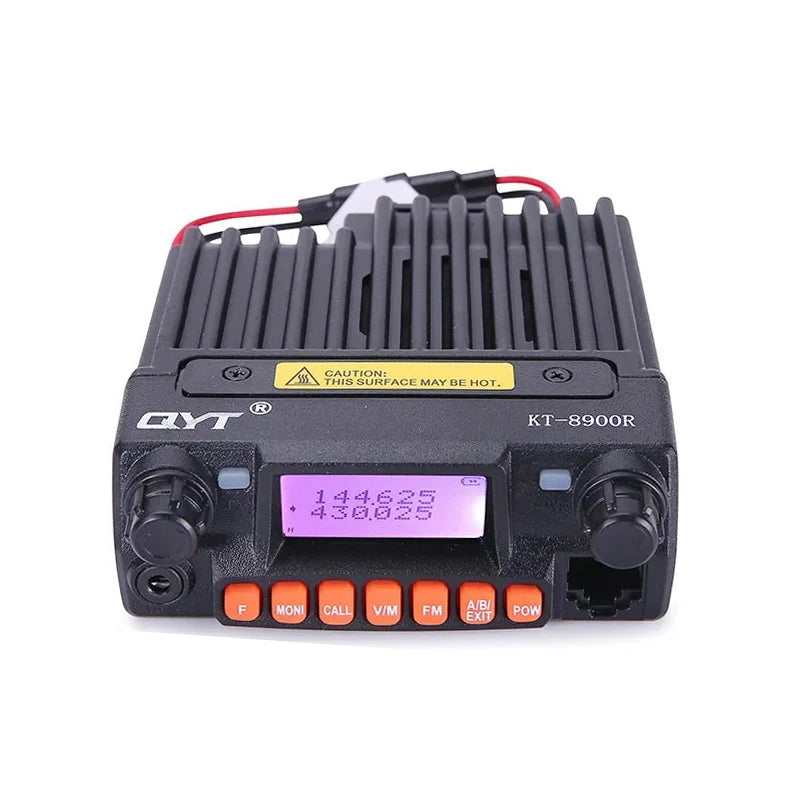

4. dual display , dual standby
6. Mini compact size , dimensions : 98 ( w ) x 35 ( h ) x 118 ( d ) mm
7. RF output power : 25 W / 20 W (VHF / UHF)

Item number	KT8900R
General
Frequency Range	VHF:136-174MHz 240-260MHz UHF:400-480MHz
Number of Channel	200
Channel Spacing	25KHz 20K 12.5
Phase lock step	5KHz, 6.25 KHz, 10 KHz ,12.5 KHz, 15 KHz, 25 KHz
Working Voltage	13.8V DC±15%
Squelch way	CTCSS/DCS/5Tone/2Tone/DTMF
Frequency Stability	±2.5ppm
Operating Temperature	-20~+60
Dimension(W x H x D)	98(W) x 35(H) x 118(D)mm
Weight	408g

Receiver
	Broadband	Narrow band
Sensitivity	≤ 0.25μV	≤ 0.35μV
Channel choice	≥70dB	≥60dB
Intermodulation	≥65dB	≥60dB
Spurious Rejection	≥70dB	≥70dB
Audio response	+1~ -3dB(0.3~3KHz)	+1~ -3dB(0.3~2.55KHz)
Signal to noise ratio	≥45dB	≥40dB
Audio distortion	≤5%
Audio output power	≥2W@10%
Transmitter
	Broadband	Narrow band
Output power	25W/20W(VHF/UHF)
Modulation Mode	16KΦF3E	11KΦF3E
Channel Power	≥70dB	≥60B
Signal to noise ratio	≥40dB	≥36dB
Parasitic harmonic	≥60dB	≥60dB
Audio response	+1~ -3dB(0.3~3KHz)	+1~ -3dB(0.3~2.55KHz)
Audio distortion	≤5%
