SPECIFICATIONS



Battery Capacity(mAh): -



Certification: CE

Dimensions: 152x77x42mm

Frequency Range: 136-174 & 400-480MHz

Hign-concerned Chemical: None

Is_Display: Yes

Material: plastic+metal

Maximum Range: 5km-10km

Model Number: UV-25D

Output Power(w): 10w-25w

Storage Channel: 512*2

Walkie Talkie Type: Portable

Waterproof / Water-Resistant: IP55

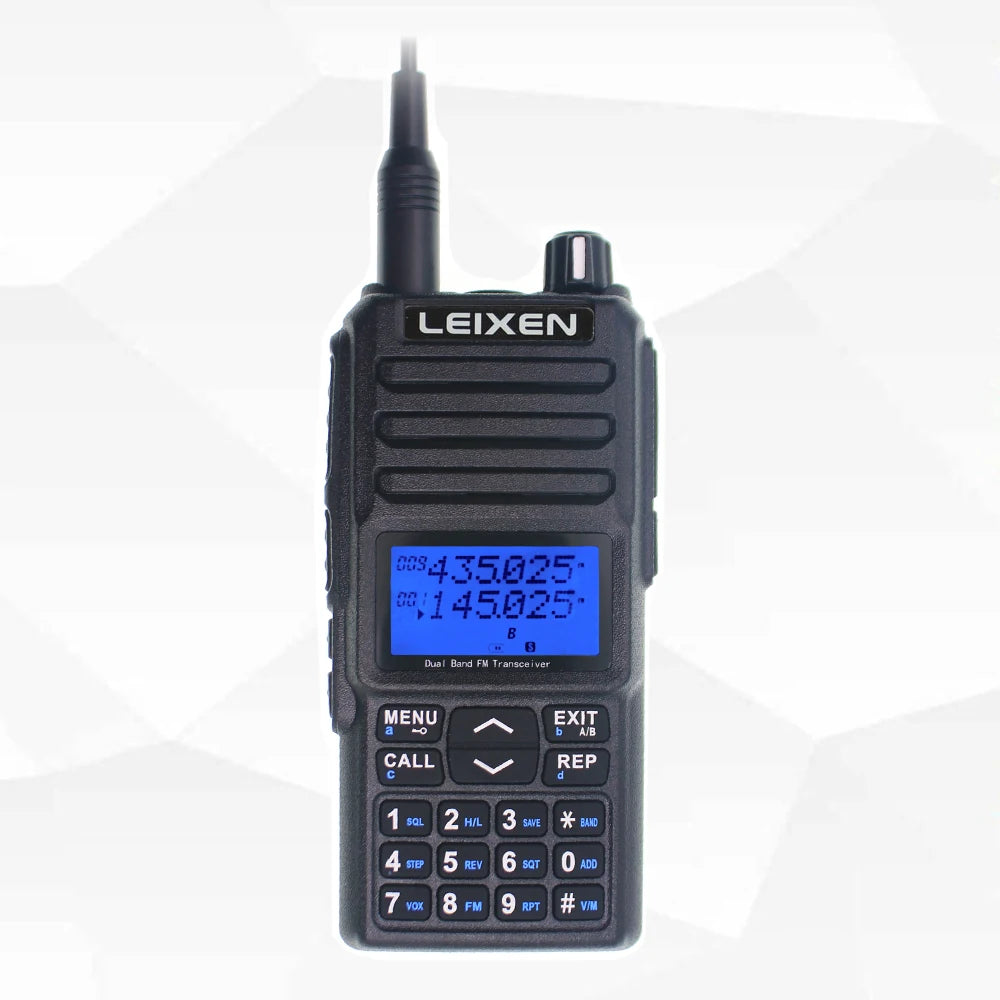

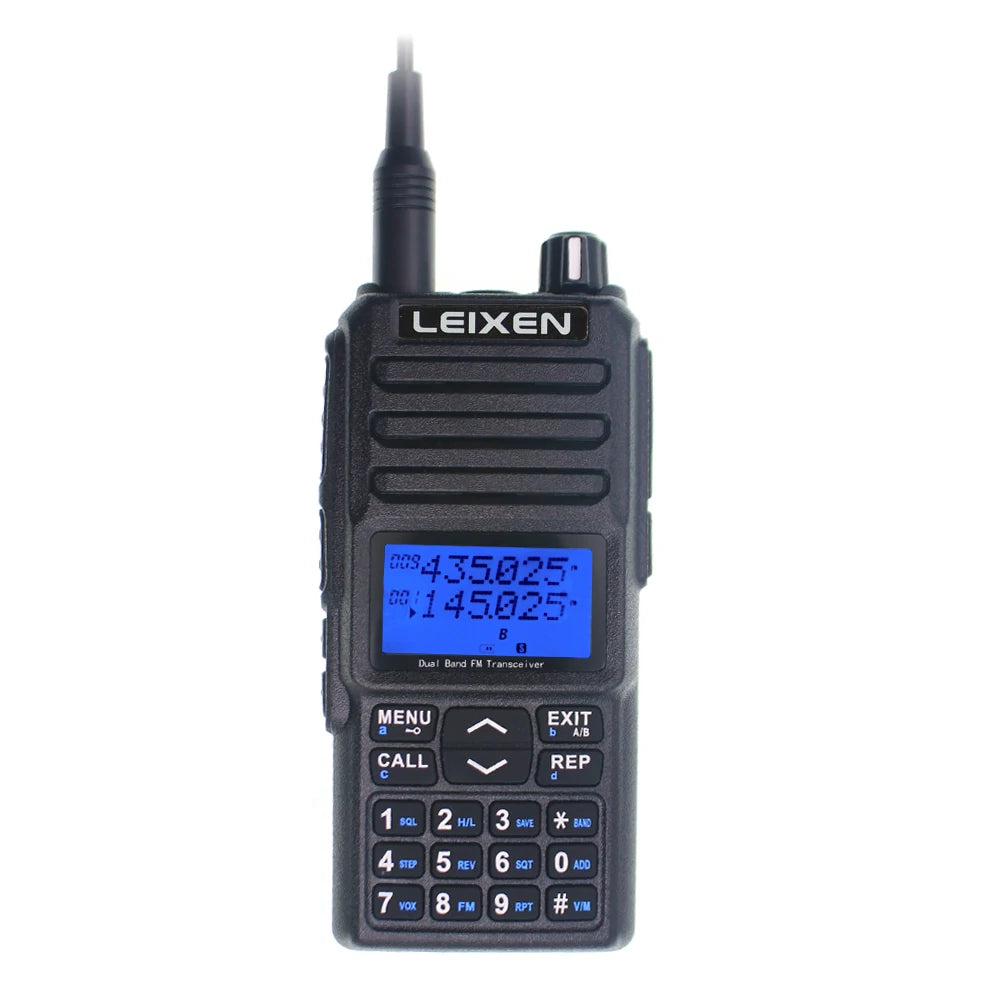

NEW LEIXEN UV-25D 20W Dual Band 136-174 & 400-470MHz Radio Long distance Amateur Radio

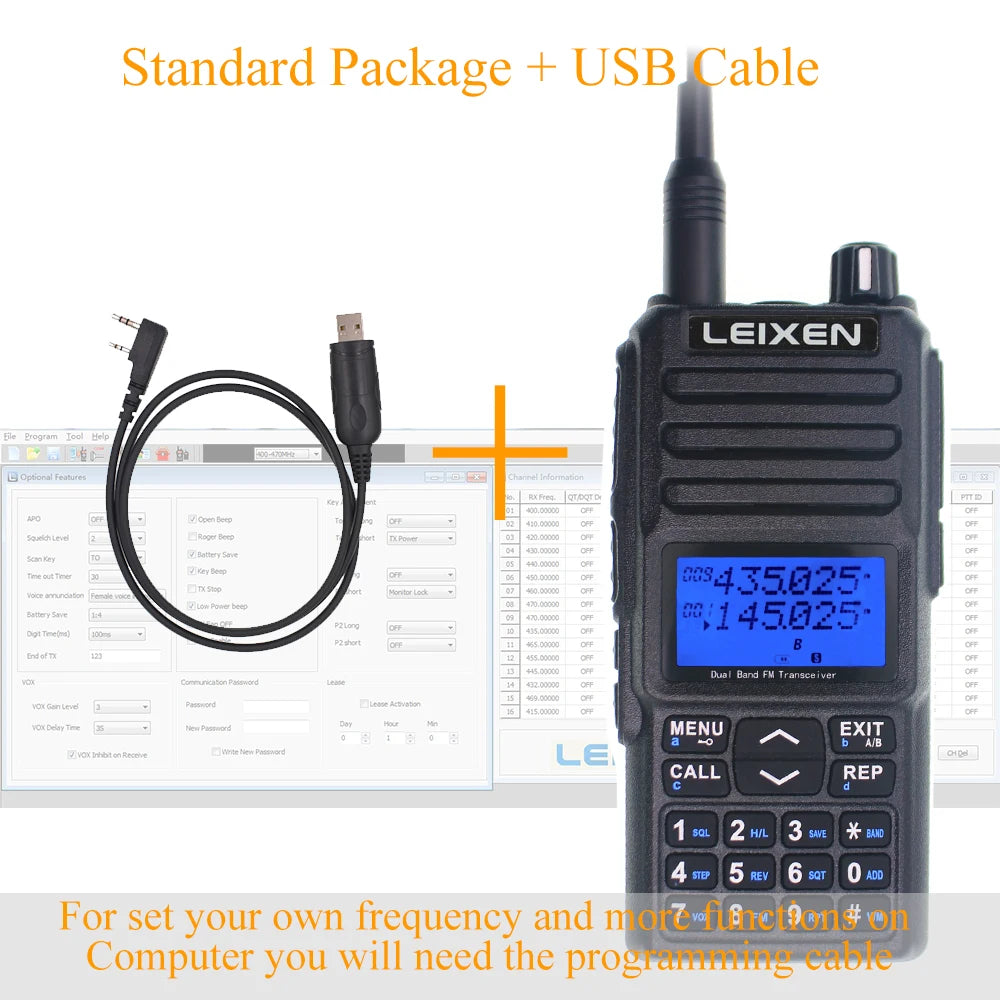

Note: if you need program software, please contact us.

Specification



Band VHF/UHF Dual Band

TX Frequency 400~480MHz /136~174MHz

RX Frequency 400~520MHz/136~174MHz/

200-260MHz/65-108MHz

Channel Capacity 512*2

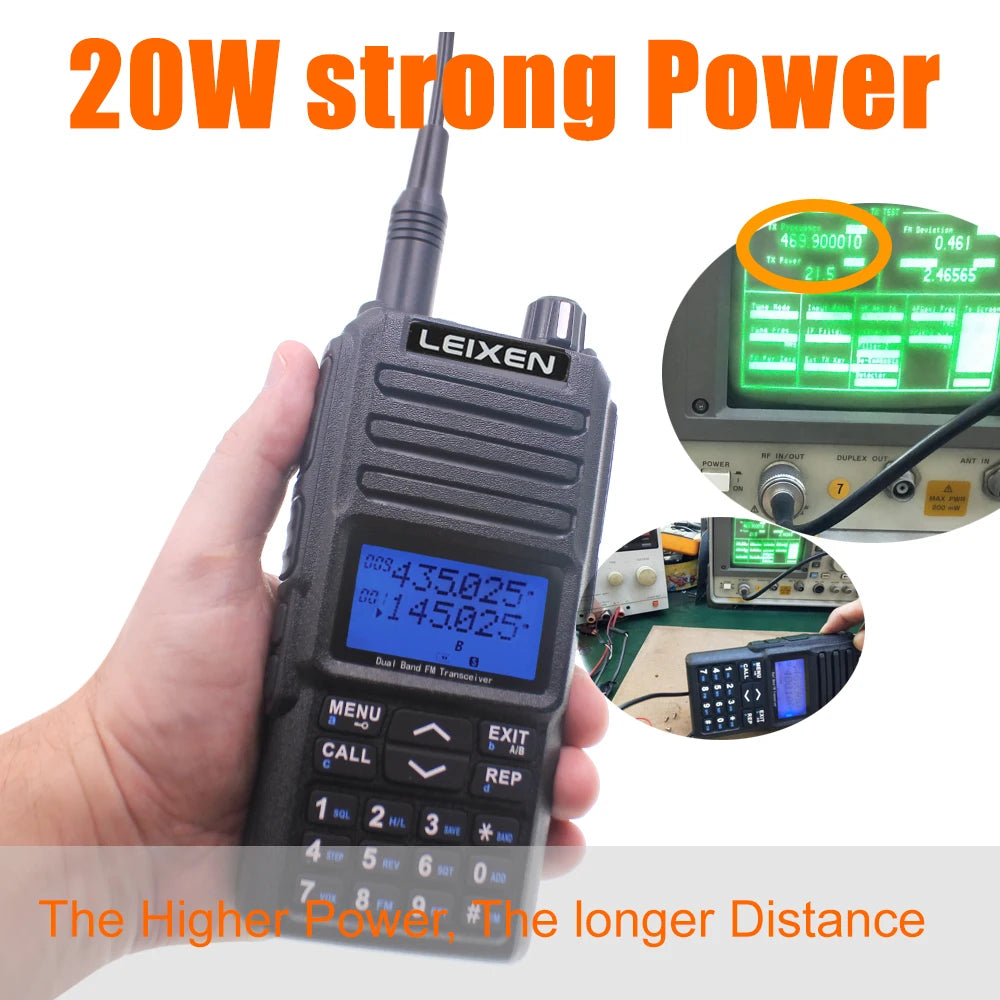

Output Power 5W/10W/20W

Operation Mode Half-Duplex

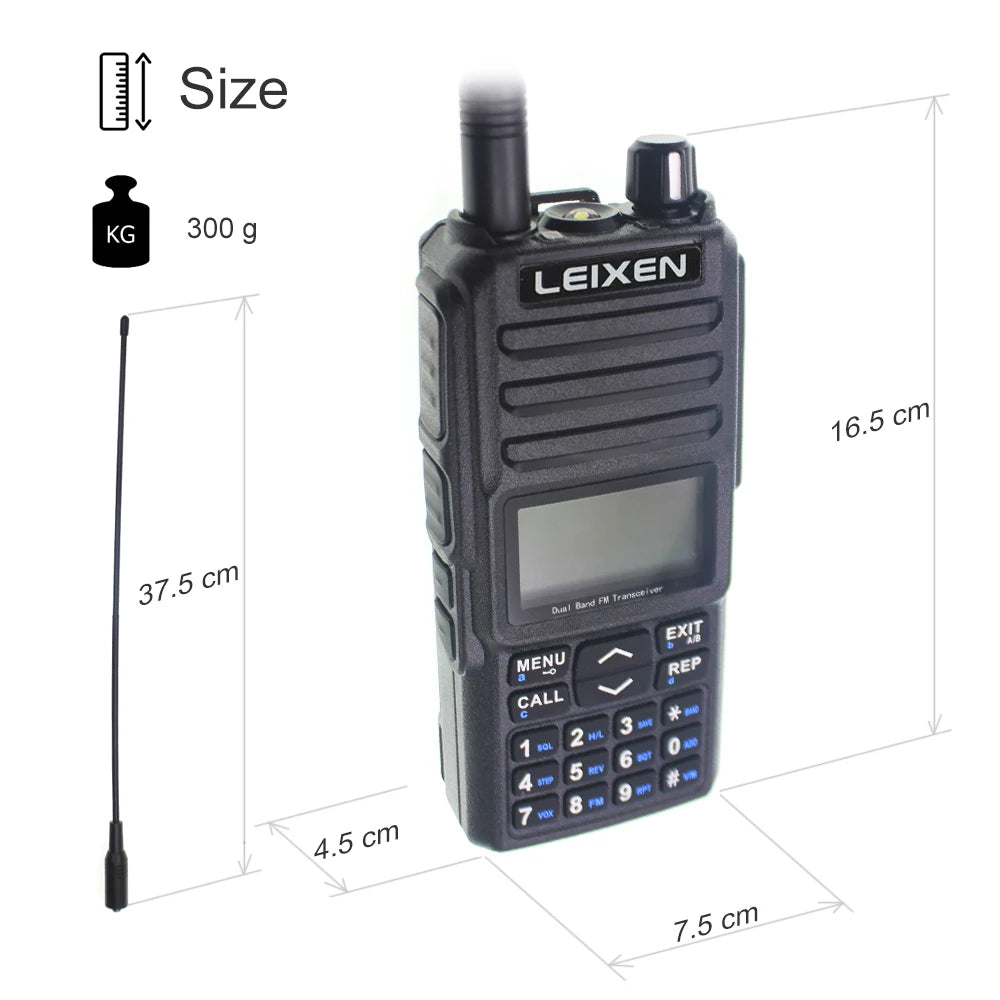

Dimension

(L*W*H) 152×77×42mm

Weight 300g

Modulation

Limitation ≤±5KHz

Spurious

Radiation 60dB

TX Current 1A/1.8A/3.5A

Frequency

Stability ±2.5PPM

Rx Sensitivity <0.18µV

Modulation Type F3E

Audio Power ≥400mW

Rated Voltage 12.6V
