SPECIFICATIONS



AC Input: 100V~120V/ 300W



Application: Home Energy

Battery Type: LiFePo4 with 3,500+ Life Cycles to 80%

Capacity: 288Wh

Car Input: DC 12V~28V-100W Max

Charge Temperature: 0°C~45°C / 32°F-113°F

Charging Time: 60 minutes-80%; 80 minutes-100%

DC Output: 12V / 24V

Dimension: L254*W172*H154 mm

Discharge Temperature: -20°C~45°C / -4°F-113°F

Display screen: Yes

Hign-concerned Chemical: None

Model Number: E300LFP

Nominal Capacity: >3500mAh

Output Volts: 100V~120V Pure Sine Wave

Rated Power: 600W

Set Type: Charger Sets

Smart APP: APP Control.

Solar Input: DC5521: Voc 12V~28V / 100W Max /7A Max

Type: LiFePO4

UPS Power: 600W

USB-C Output / Input: PD 100W output; 45W input, rechargeable and discharge.

Weight: 10.6lbs(4.8Kg)

Wifi connect: Wifi remote control or Bluetooth control



Feature:

• [SMALL BUT POWERFUL]: 288Wh capacity with 600W AC pure sine wave inverter, Built-in 9 standard outlets, E300LFP portable power station can be used outdoors and in power outages for most of your equipment.

• [POWER IT ALL]: E300LFP portable power station featuring 2 AC outlets, 2 USB-A ports, 1 USB-C port (input/output supported), 2 DC5525 ports, 1 car outlet, 1x15W wireless charger, compatible with virtually all essential devices.

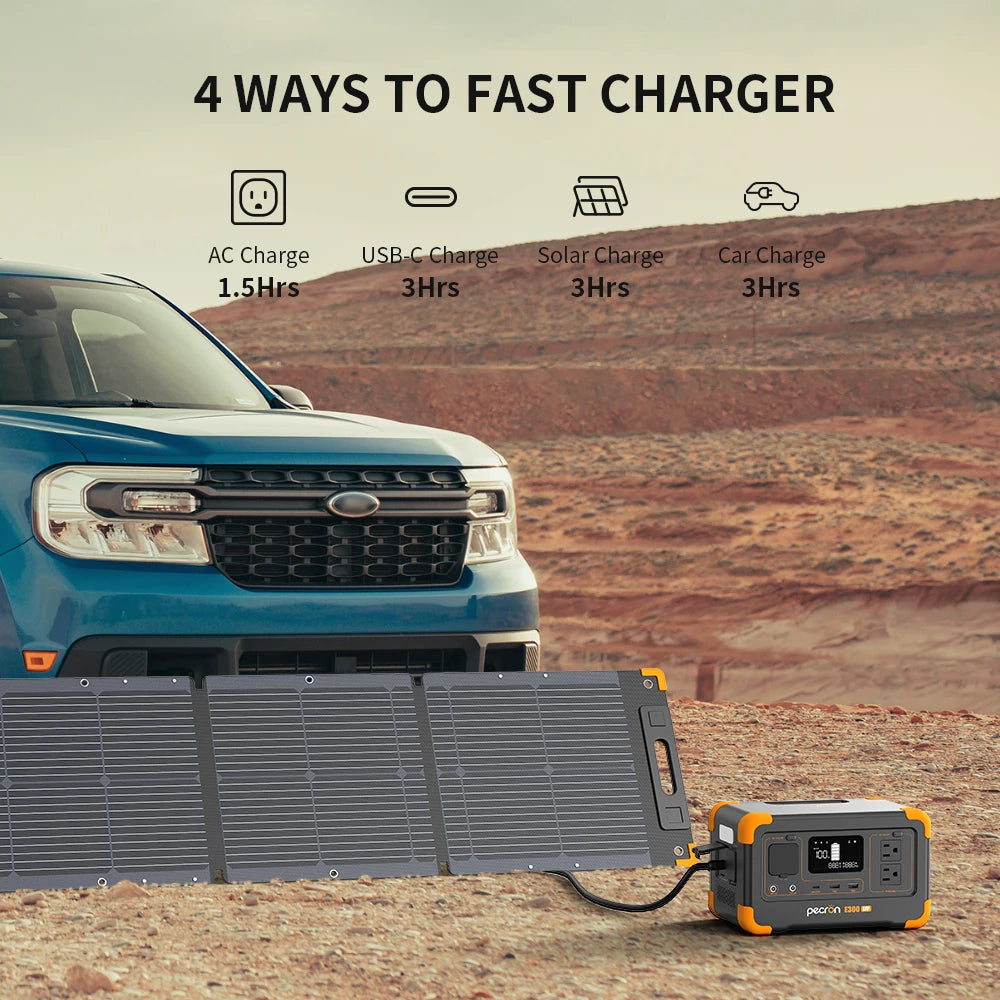

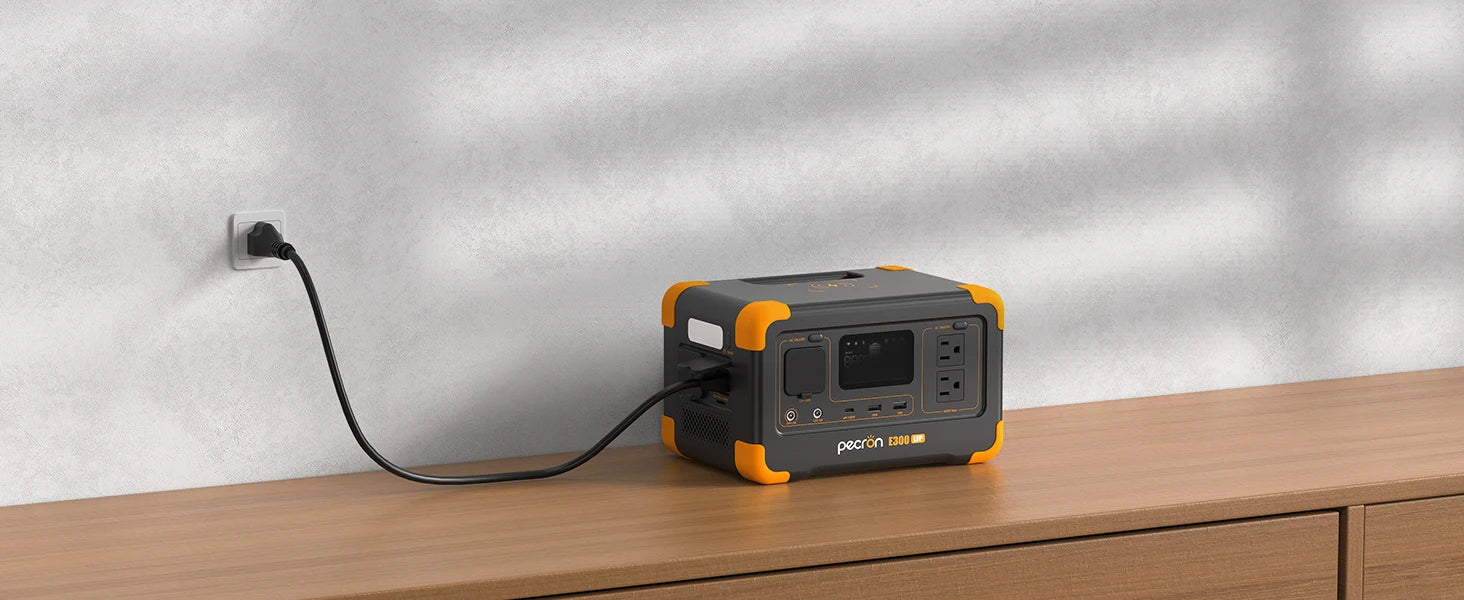

• [4 CHARGING WAYS]: E300LFP portable power station up to 300W AC fast charging, fully charged in 80 minutes. With solar panels MAX 100W solar input(VOC12-28V), is fully charged in 3 hours. Also can use a car charger(100W) and the USB-C (45W)supports bi-directional input.

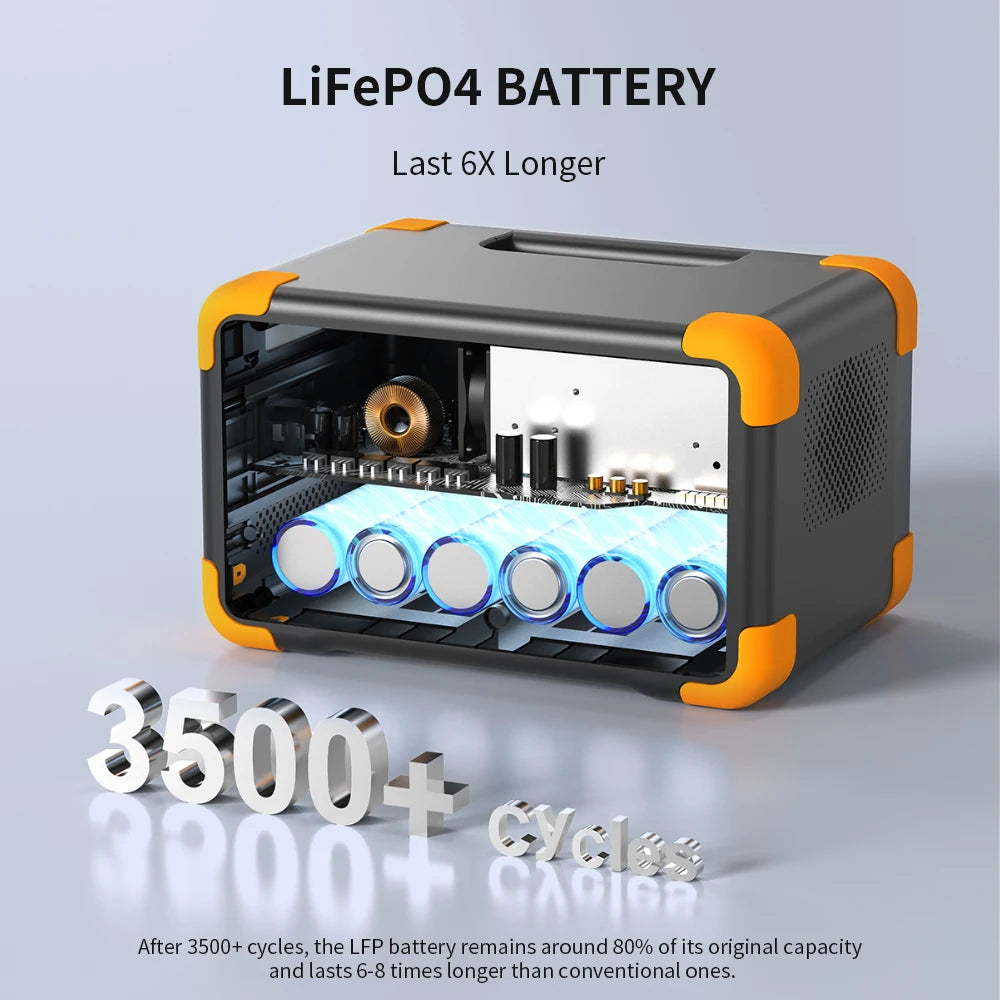

• [SAFETY AND DURABLE]: The ultra-safe LiFePO4 battery with Built-in BMS assures the self-protection of short circuits, overload, and overheating. 120V Pure-sine wave inverter makes sure there is no damage to your sensitive electronic devices.





Charge Multiple Devices



Fast Charging



Travel Emergencies

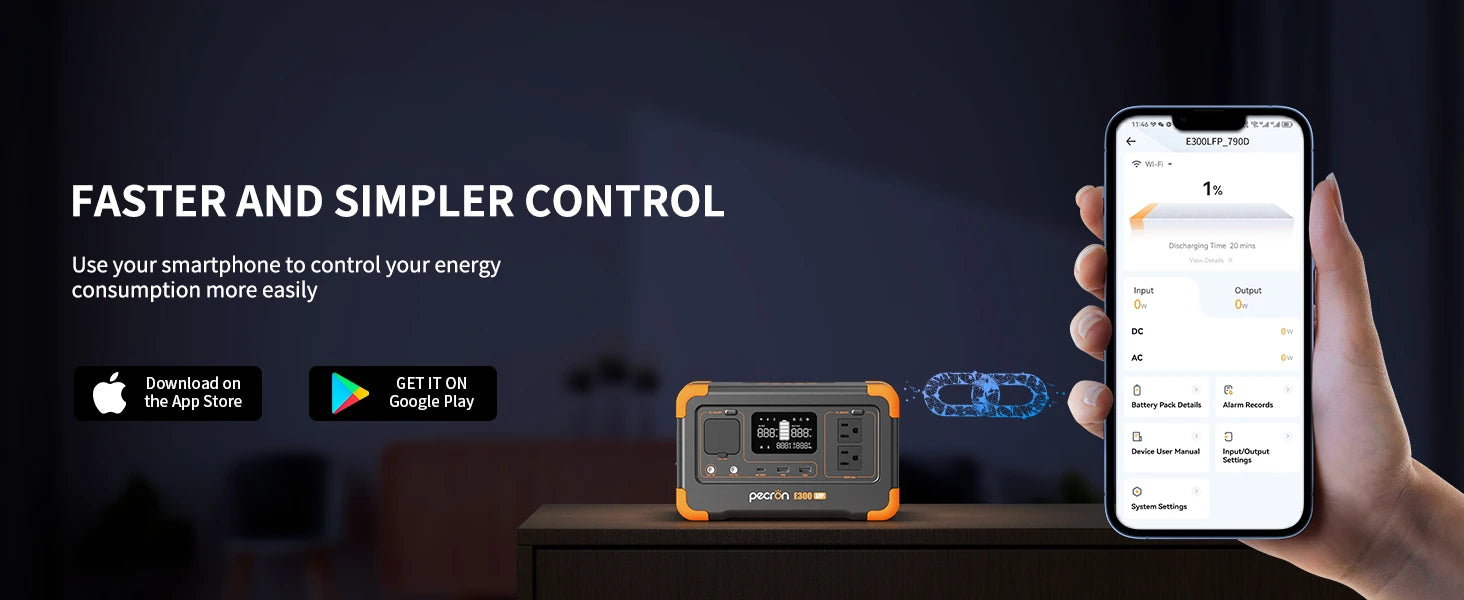

APP Control

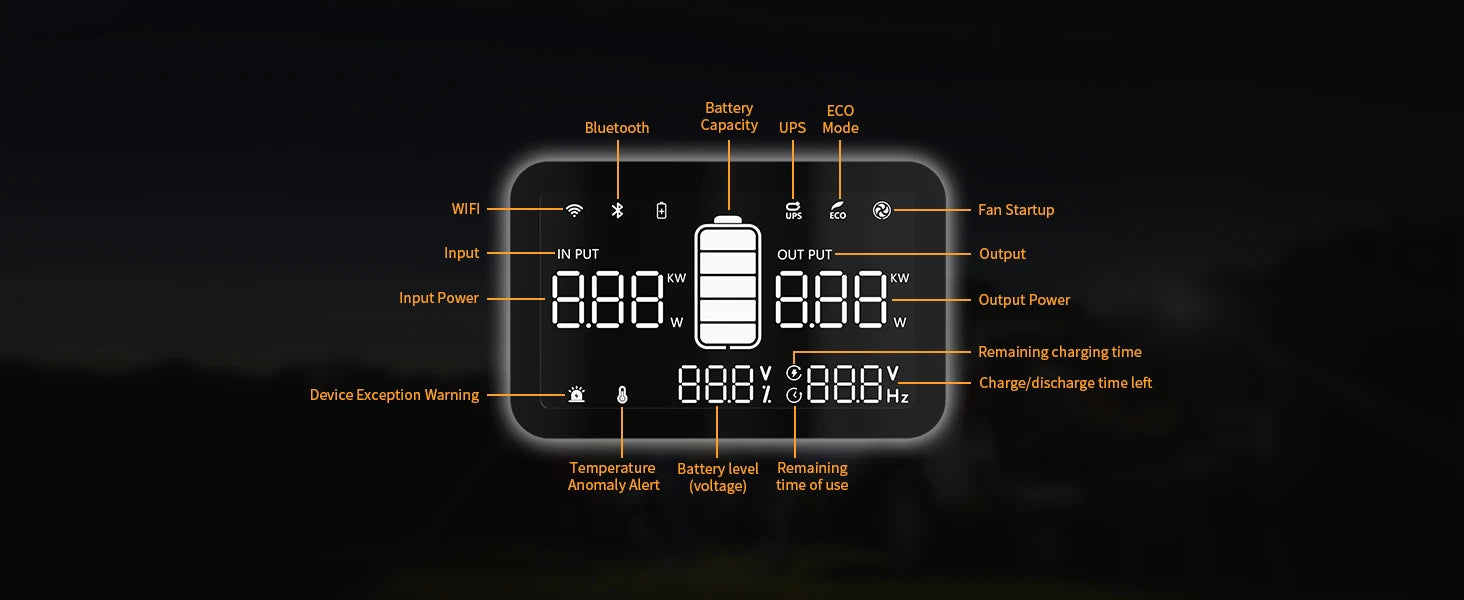

LED Screen



E300LFP Specifications:

• Model:E300LFP

• Rated Power:600W

• UPS Power:600W

• Capacity:288Wh

• Output Volts:100V~120V Pure Sine Wave

• Dimension:L254*W172*H154 mm

• Battery Type:LiFePo4 with 3,500+ Life Cycles to 80%

• Weight:10.6lbs(4.8Kg)

• DC Output:12V / 24V

• Solar Input:DC5521: Voc 12V~28V / 100W Max /7A Max

• Car Input:DC 12V~28V-100W Max

• AC Input:100V~120V/ 300W

• Charging Time:60 minutes-80%; 80 minutes-100%

• Smart APP:APP Control.

• Wifi connect:Wifi remote control or Bluetooth control

• Charge Temperature:0°C~45°C / 32°F-113°F

• Discharge Temperature:-20°C~45°C / -4°F-113°F

• USB-C Output / Input :PD 100W output; 45W input, rechargeable and discharge.

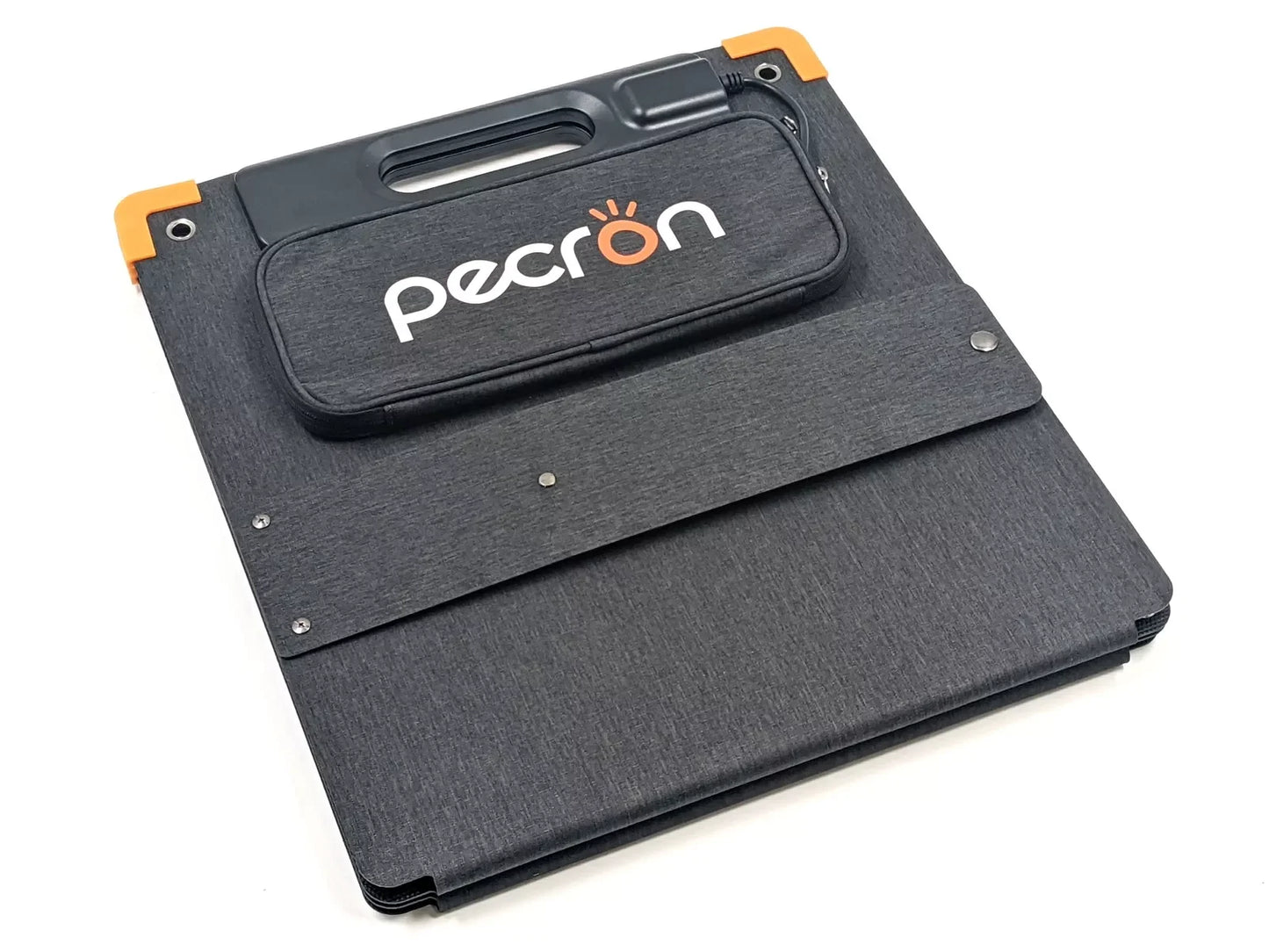

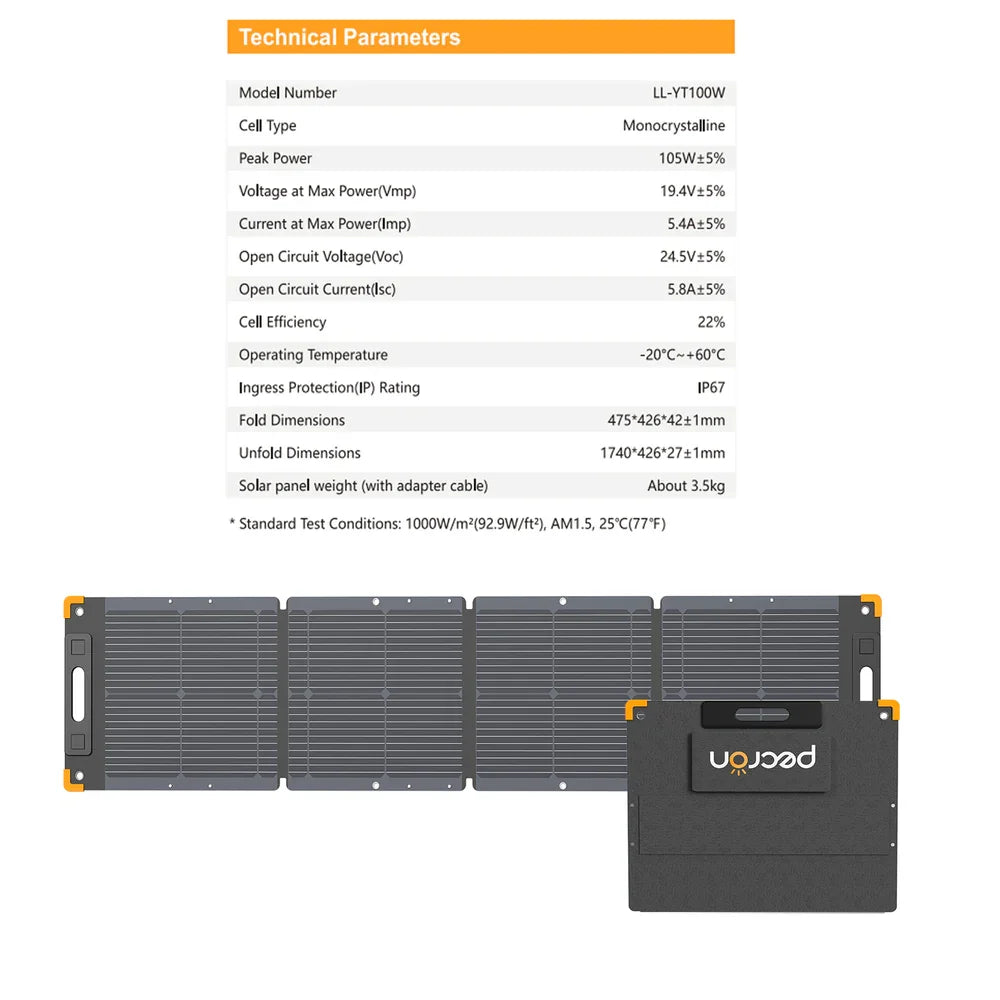

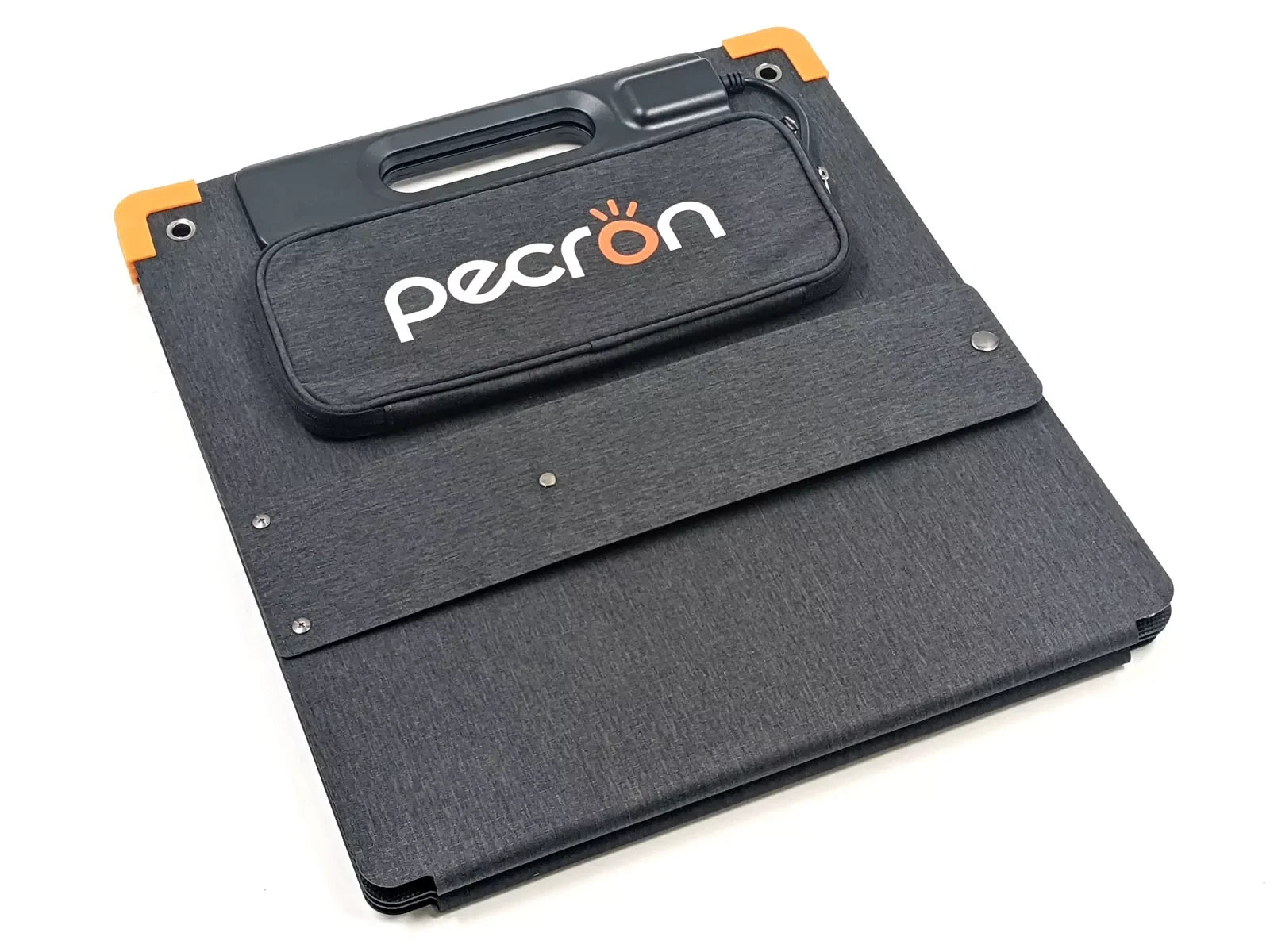

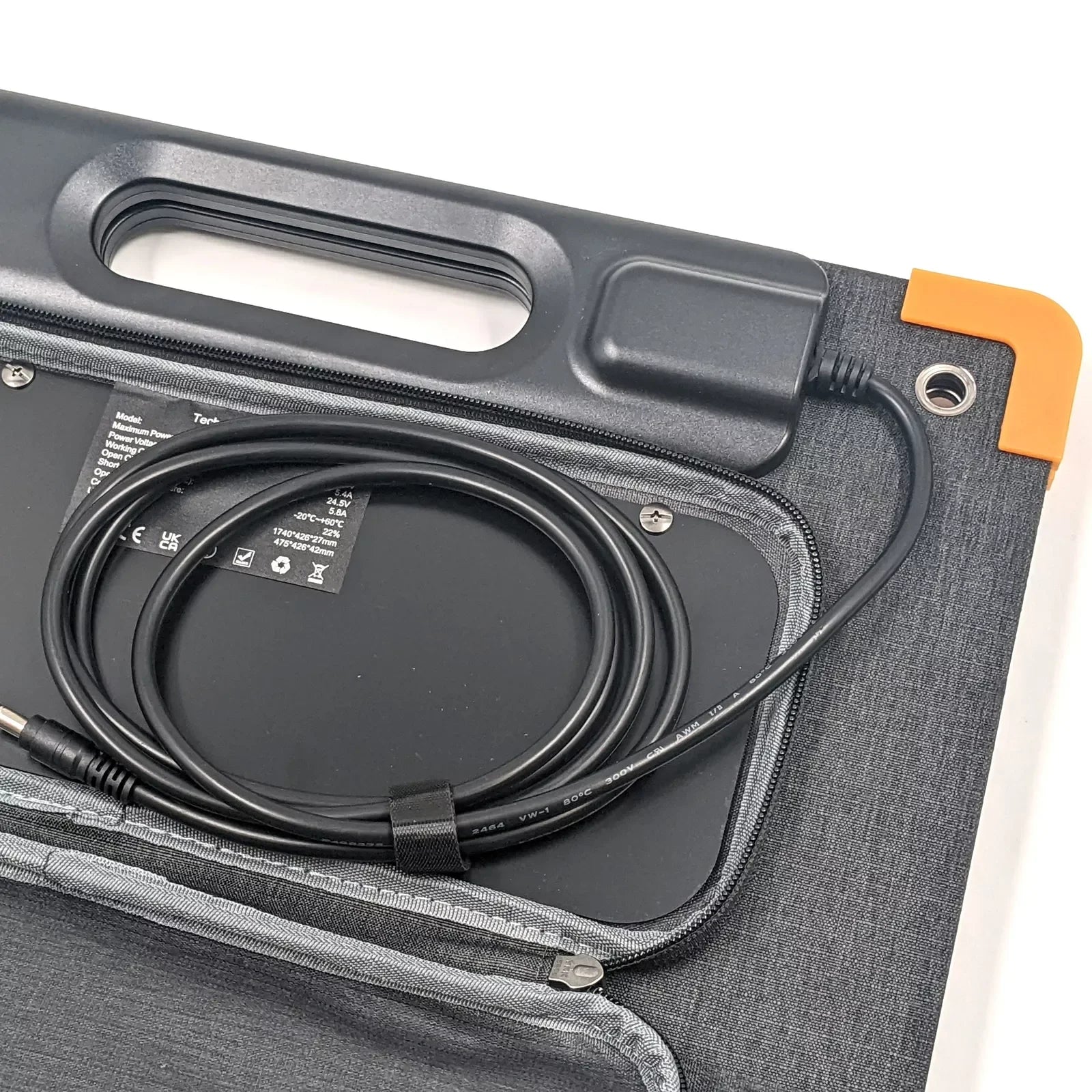

100W Solar Panel Specifications:

• Model Number:PV100

• Cell Type:Monocrystalline

• Peak Power:105W+5%

• Voltage at Max Power(Vmp):19.4V+5%

• Current at Max Power(lmp):5.4A+5%

• Open Circuit Voltage(Voc):24.5V+5%

• Open Circuit Current(lsc):5.8A+5%

• Cell Efficiency:22%

• Operating Temperature:-20°C~+60°C

• Ingress Protection(lP) Rating:IP67

• Fold Dimensions:475*426*42+1mm

• Unfold Dimensions:1740*426*27+1mm

• Solar panel weight (with adapter cable):About 3.5kg

• Standard Test Conditions:1000w/m2(92.9W/ft2), AM1.5, 25”C(77°F)

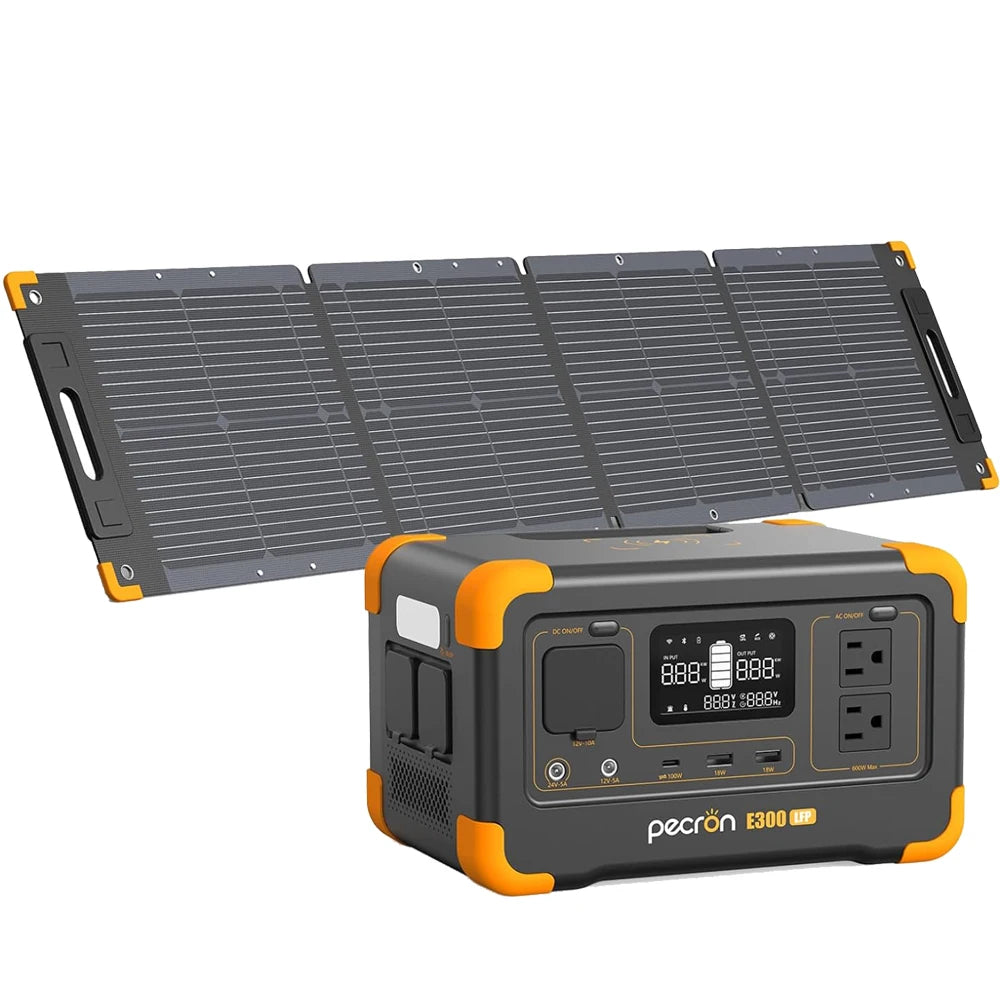

Package listing:

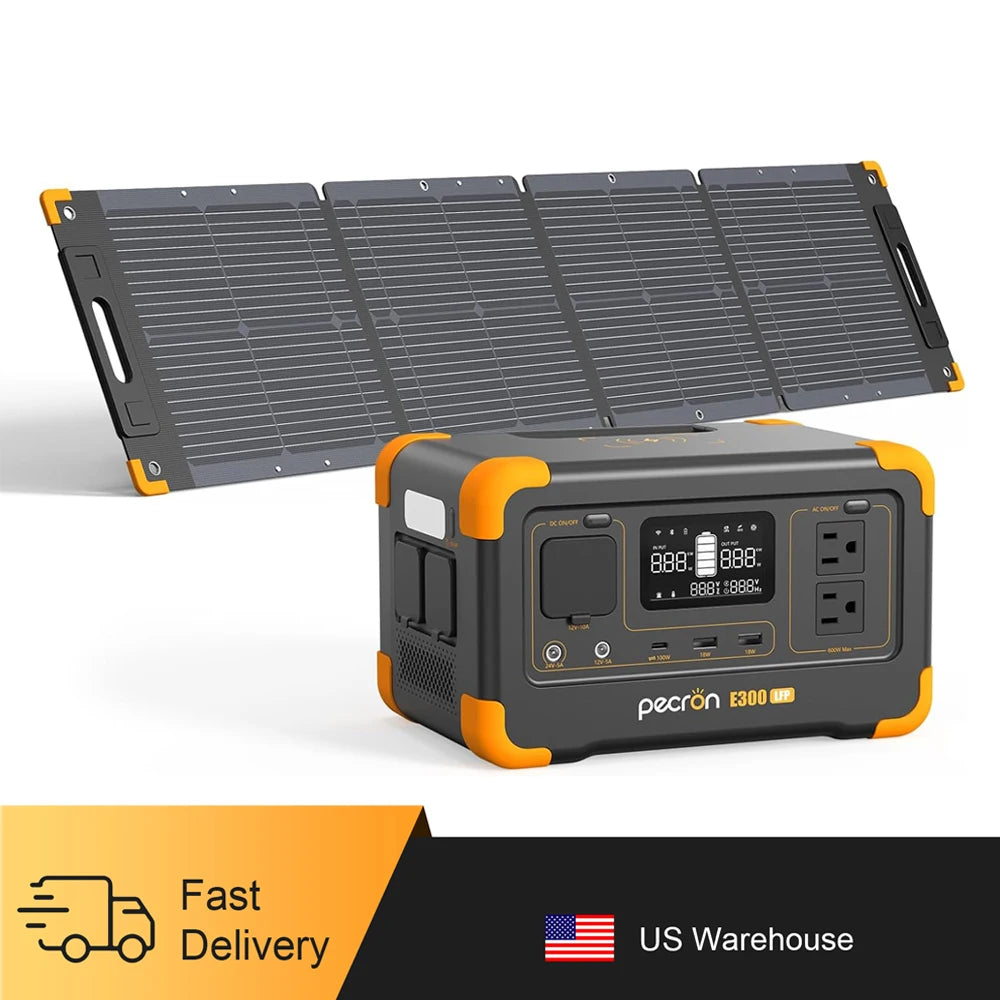

• 1*E300LFP Portable Power Station

• 1*100W Solar Panel

• 1*AC charger

• 1*Car charger

• 1*User manual

• 1*Accessories bag



FAQS:

Q:What kind of battery is used in the E300LFP portable power station? How long it can last?

A:E300LFP portable power station utilizes a high-quality UL-certified automotive LiFePO4 battery, it can retain 80% of its original capacity at 3500 complete charge cycles.

Q:What devices can E300LFP portable power station power?

A:Please note that the AC output port can only charge or power devices that operate at less than 600W. DC output port can only charge or power devices that operate at less than 12V-10A and 24V-5A.

Q:Can the E300 LFP be charged while discharging?

A:Yes, the E300LFP portable power station can be charged and discharged simultaneously. The AC charging port/5521/USB-c three ports can also charge at the same time.

Q:Does the E300LFP portable power station have a built-in MPPT charge controller?

A:Yes, there is one independent built-in MPPT controller; the “5521” port supports 12~28V(Max 100W) PV input.

Q:Can the E300LFP portable power station be used as UPS?

A:Yes, the E300LFP portable power station supports the UPS function with an automatic switchover time of 8~20ms.
