SPECIFICATIONS



Application: Others



Certification: CE,KC,pse,RoHS,weee,UL

Display screen: Yes

High-concerned chemical: None

Model Number: R2500+SP-027

Nominal Capacity: 2016Wh

Replacement Battery: No

Set Type: Charger Sets

Type: LiFePO4

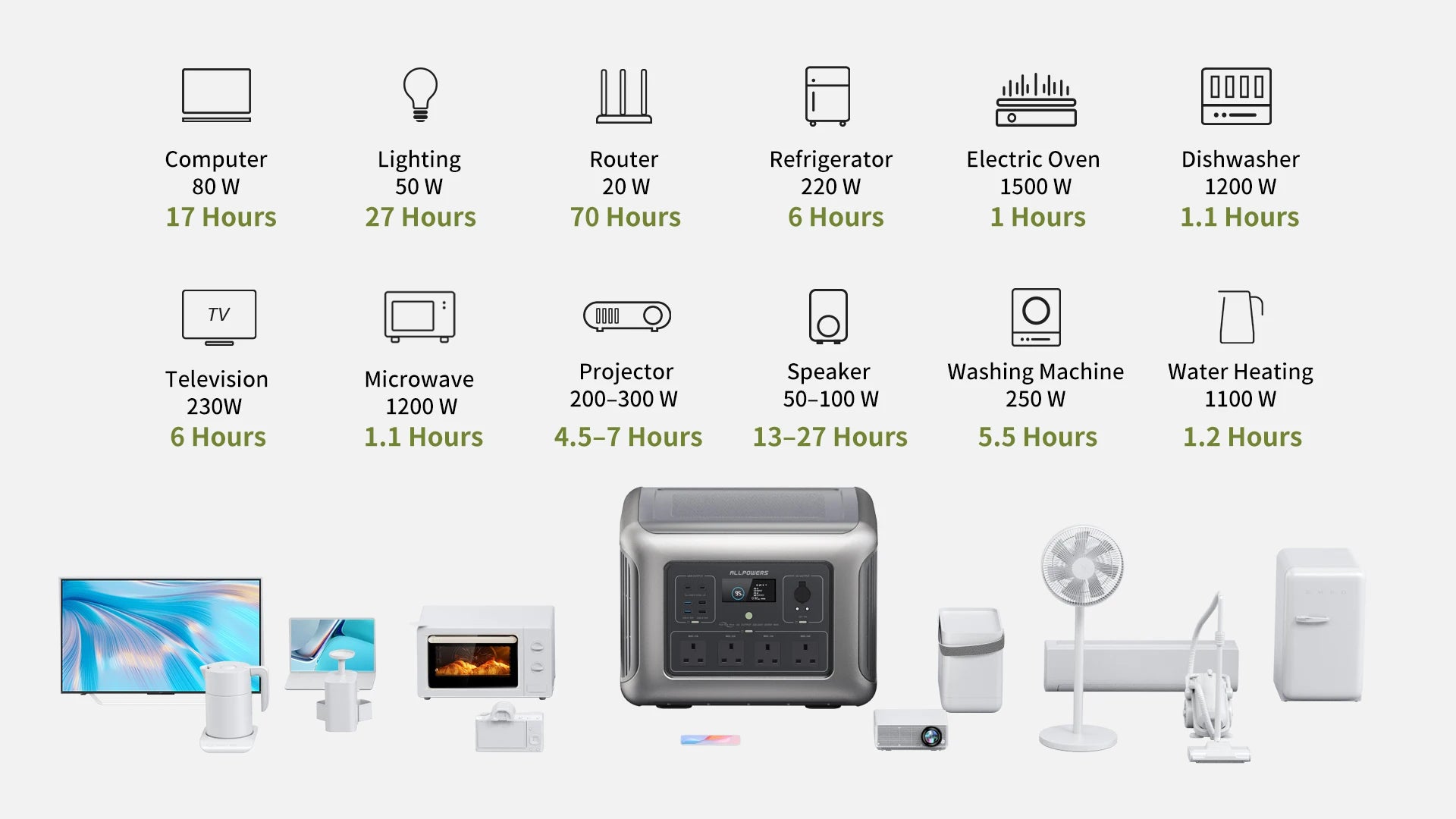

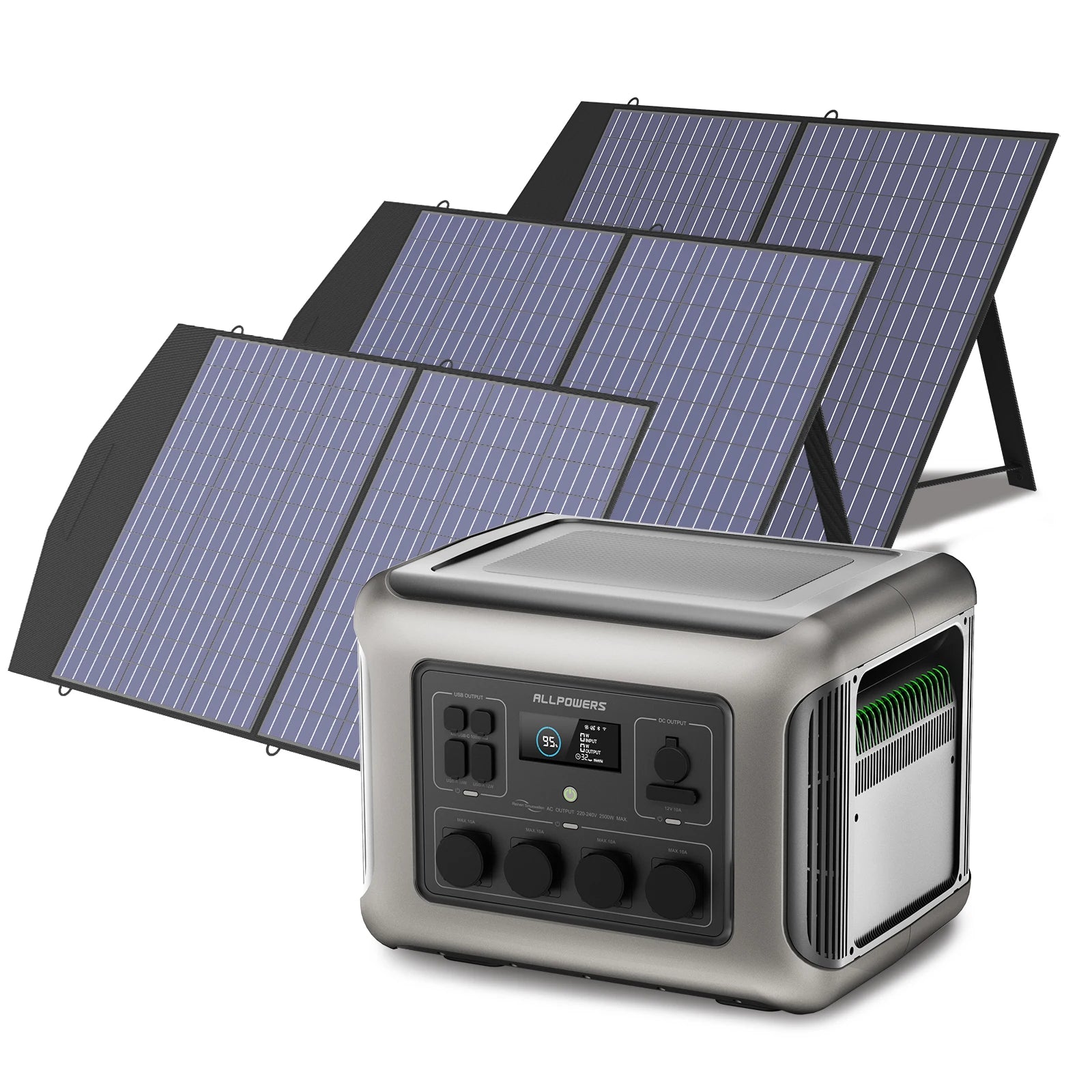

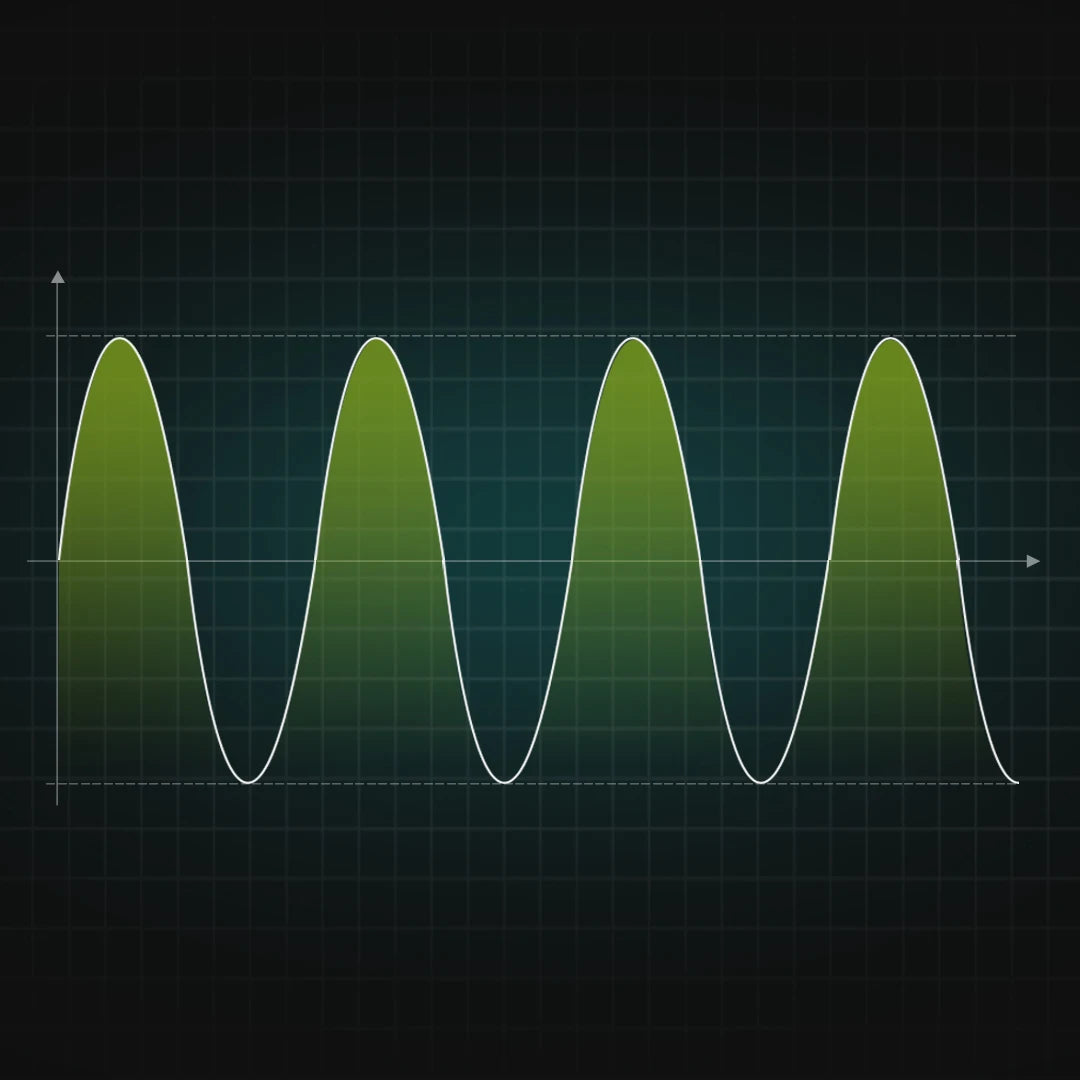

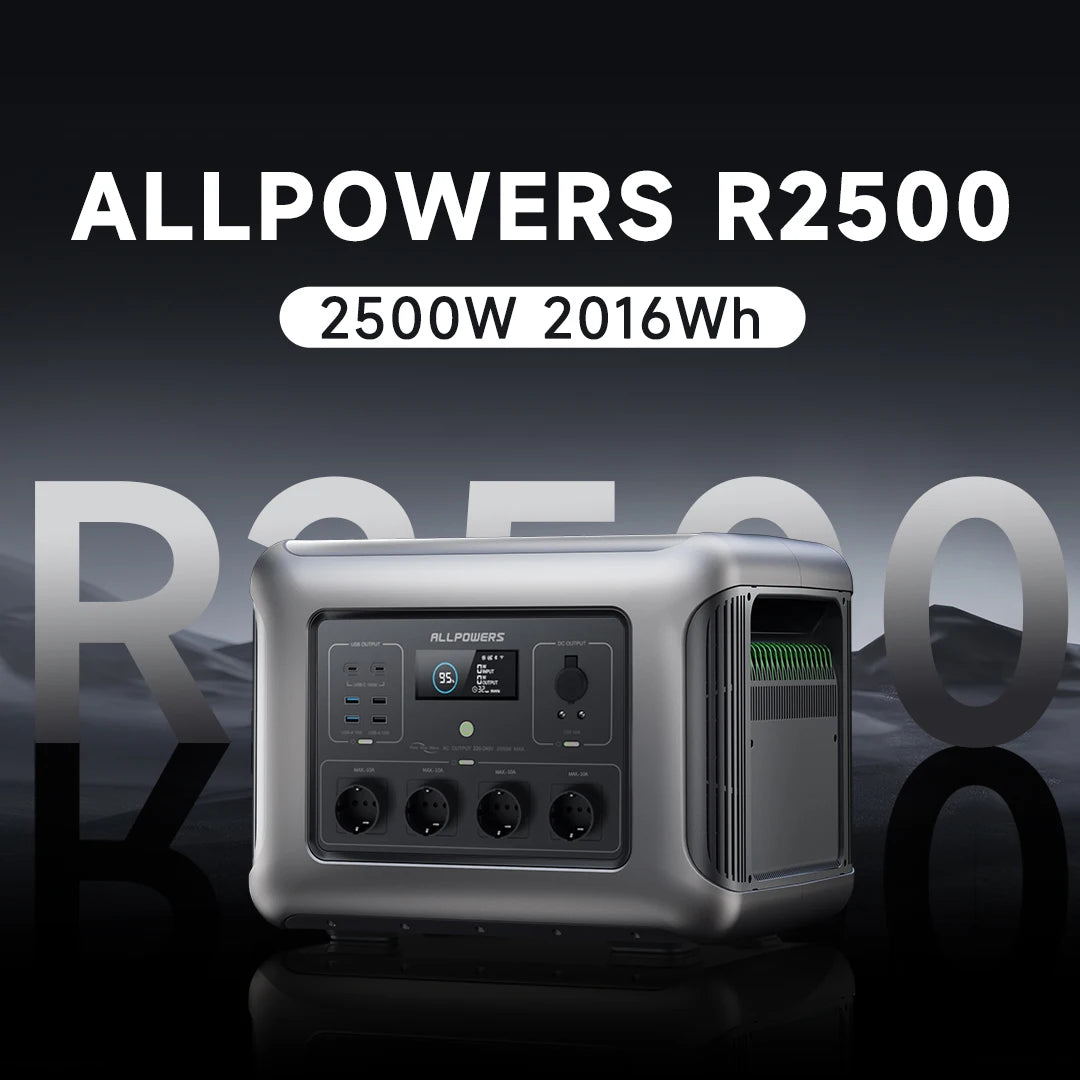

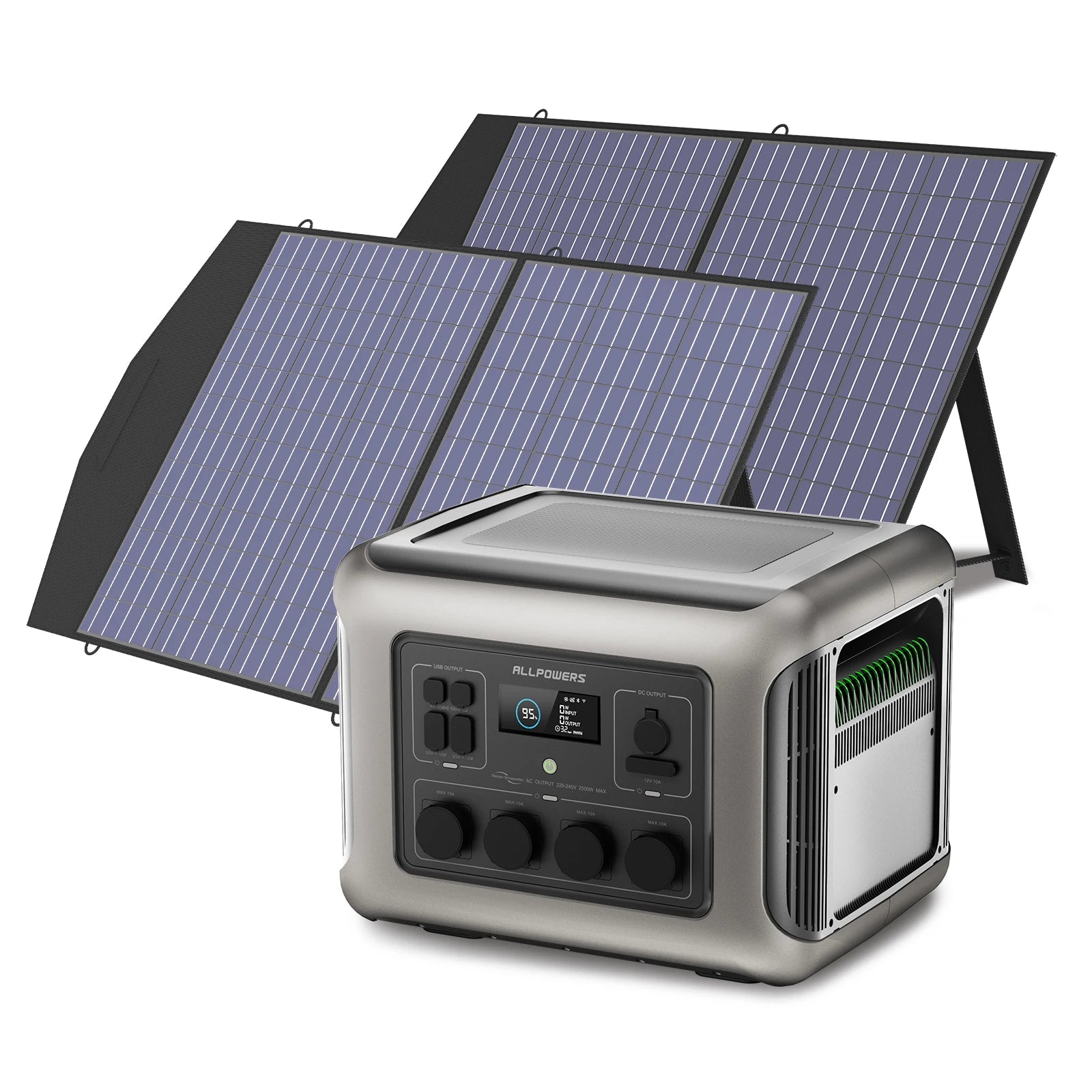

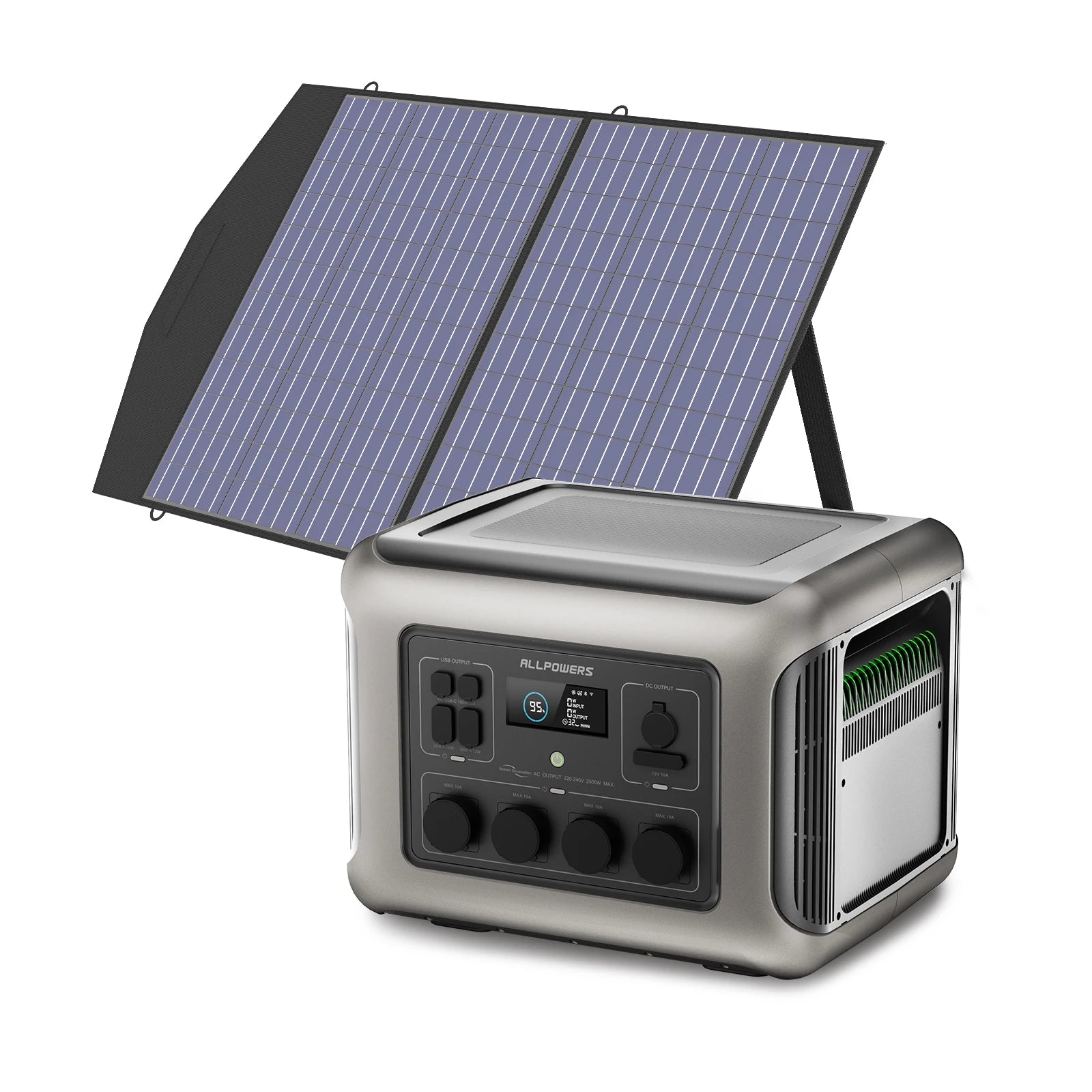

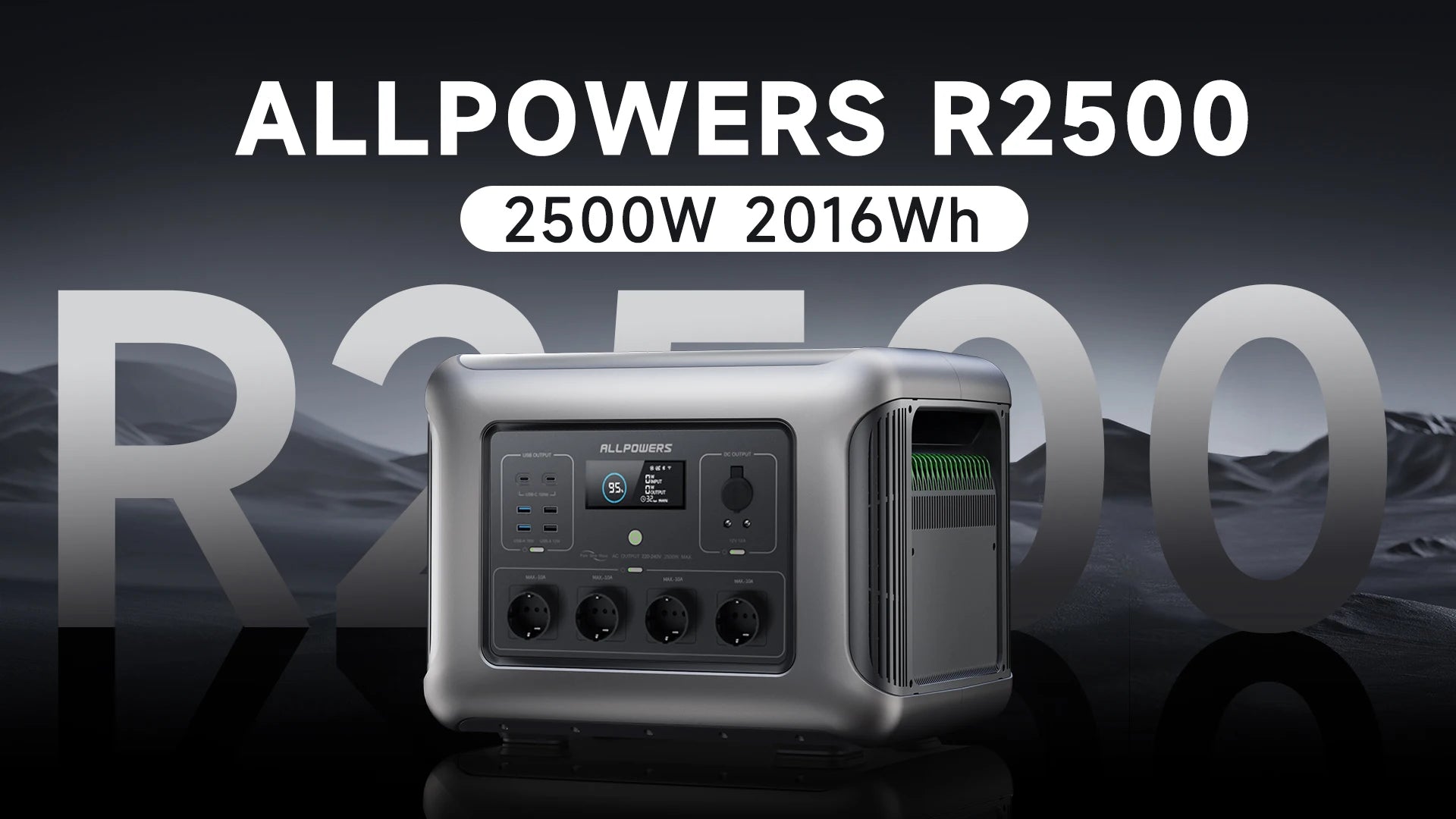

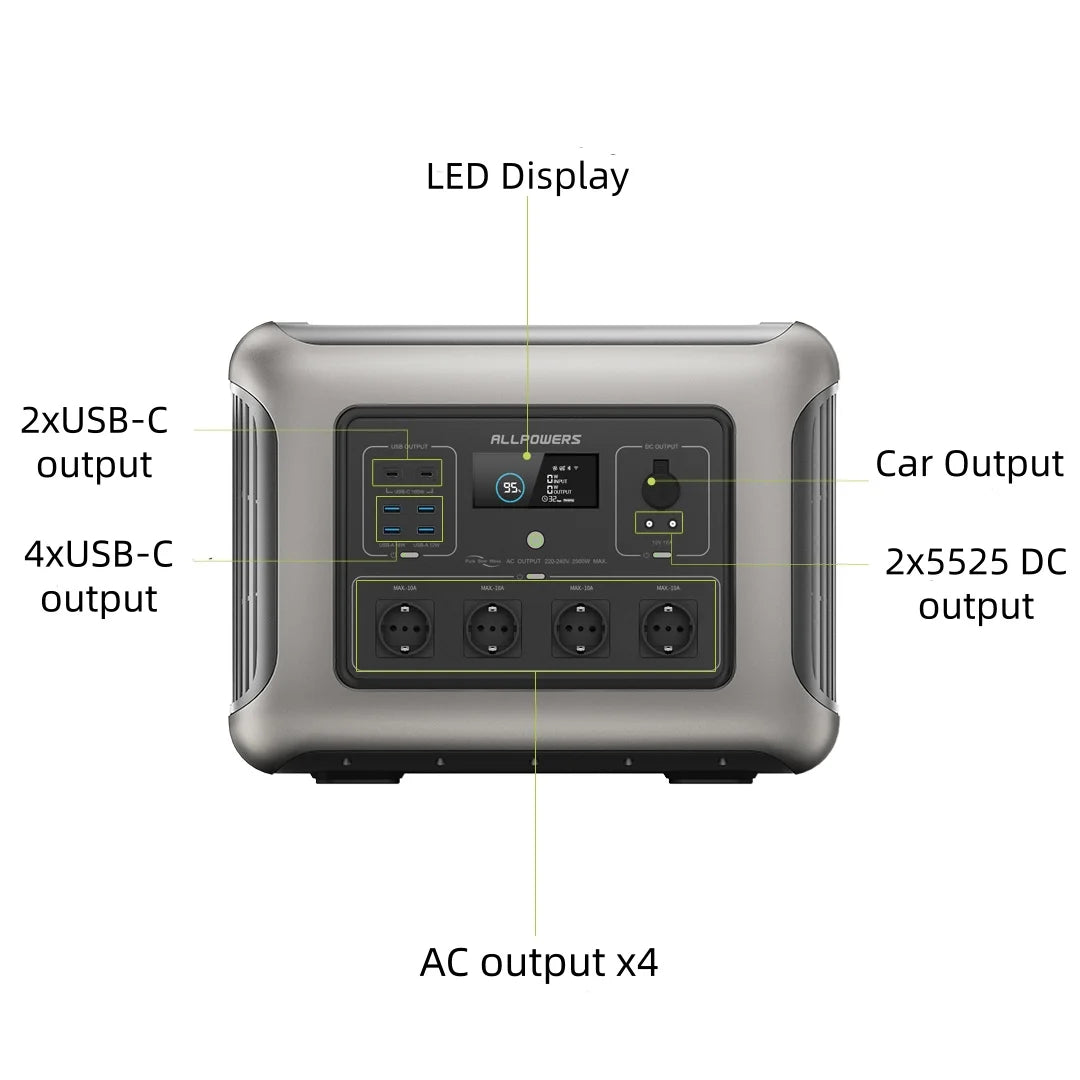

【Charge 13 Devices Simultaneously】ALLPOWERS R2500 Portable Power Station is equipped with a 2016Wh battery. It has 4* pure sine wave AC outputs (230V 2500W, peak 4000W), 2* 100W USB-C, 4* USB-A output, 2* DC5525, 1* car cigarette lighter (12V/10A). ALLPOWERS solar generator supports charging household appliances or RV batteries. It is very suitable for home emergency power failure and long-distance outdoor travel by RV.

【Amazing Fast Charging】 Thanks to our proprietary AP-POWER technology, R2500 battery can be charged from 0 to 100% in just 1 hour with solar panel and wall outlet charging. Equipped with short-circuit release switch, it can maximize the safety of charging and discharging and avoid idle time self-consumption. You can also charge from wall sockets, solar or car separately.

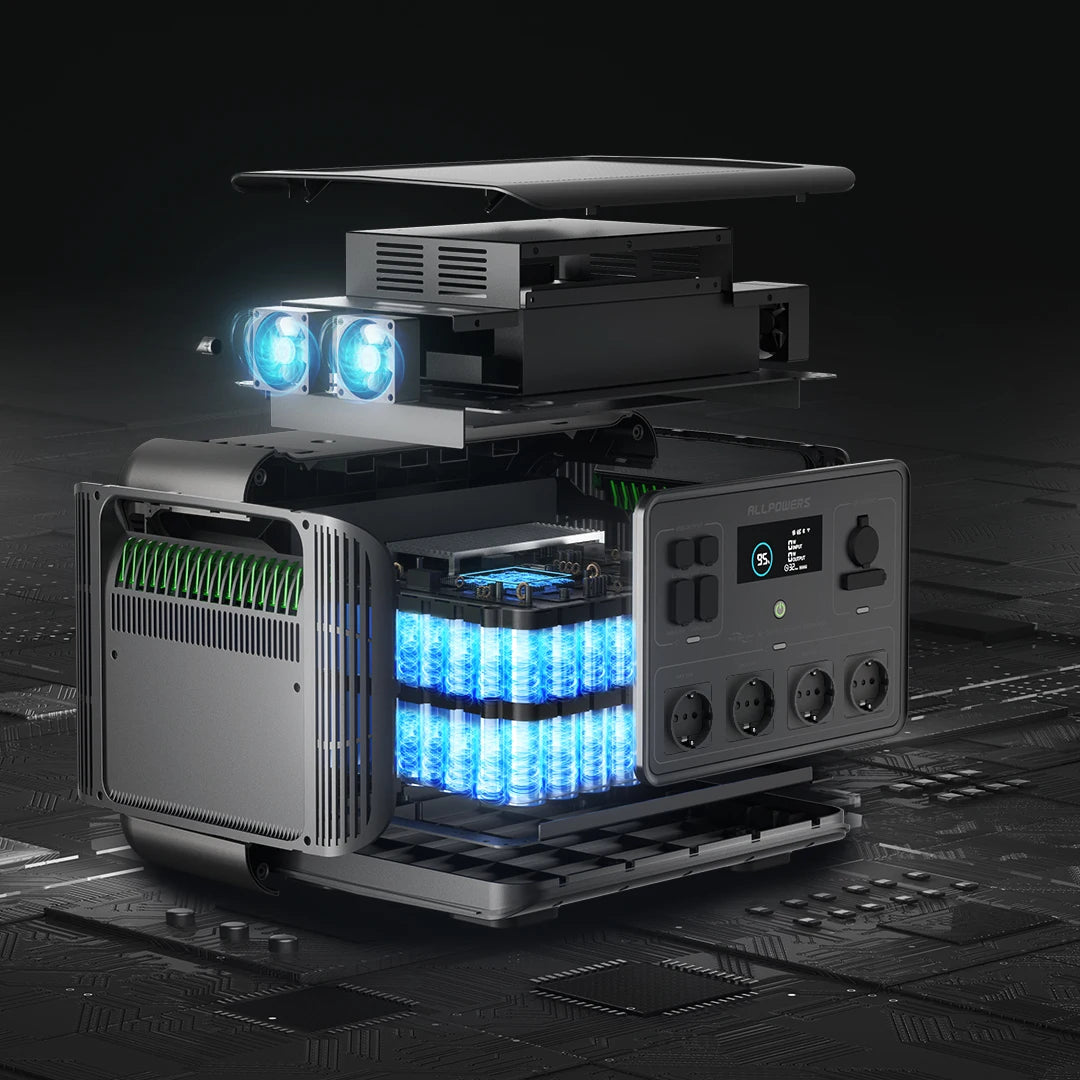

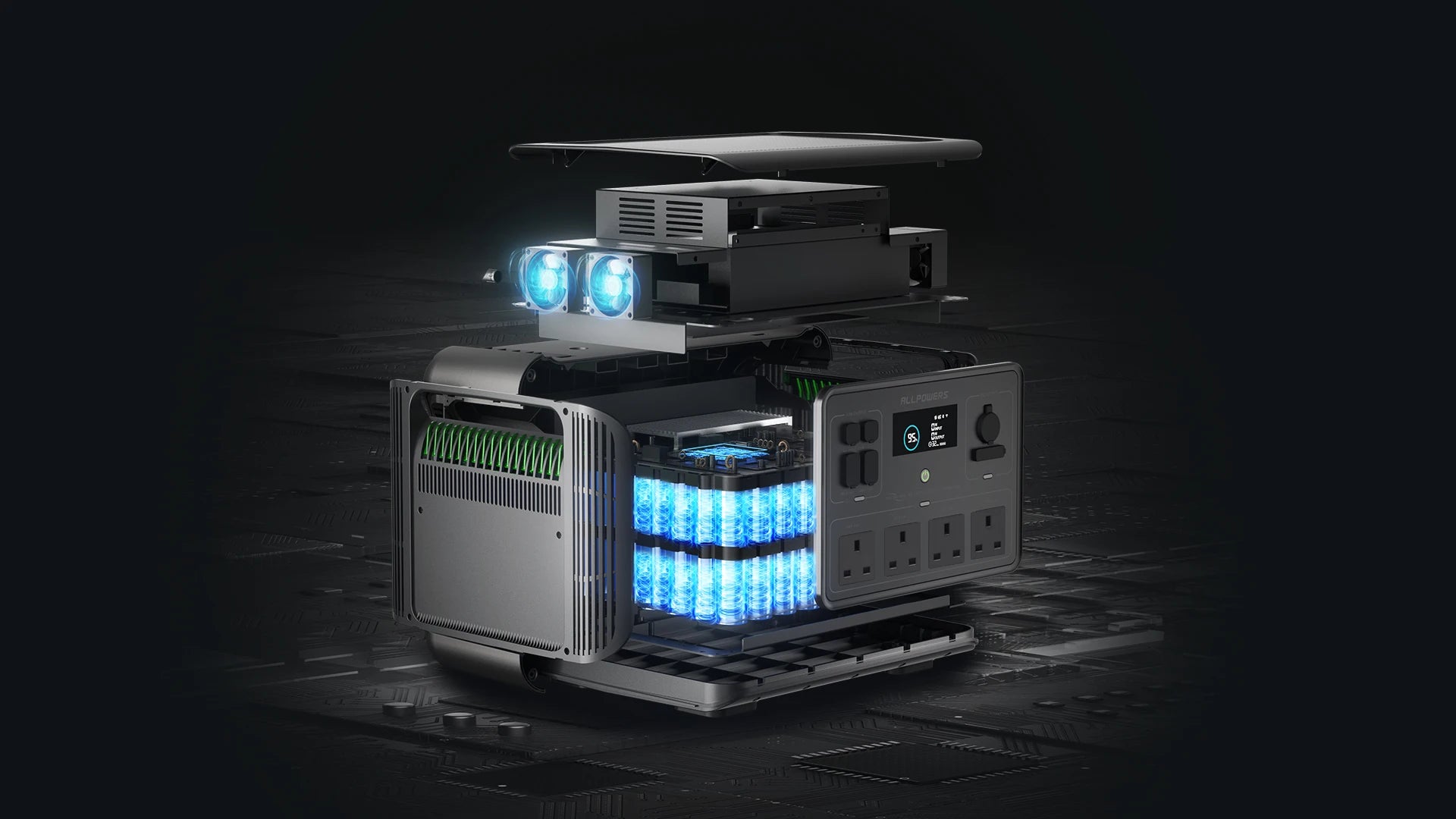

【Extremely Long Life LiFePO4 Battery】 This ALLPOWERS R2500 power station has a LiFePO4 battery. The maximum battery capacity is higher than 80% after 3500 cycles of charging and higher than 50% after 6500 cycles. Therefore R2500 lifespan exceeds 10 years. The R2500 power station features advanced BMS protection that monitors voltage, current and temperature to ensure the safety of the R2500 in all circumstances.

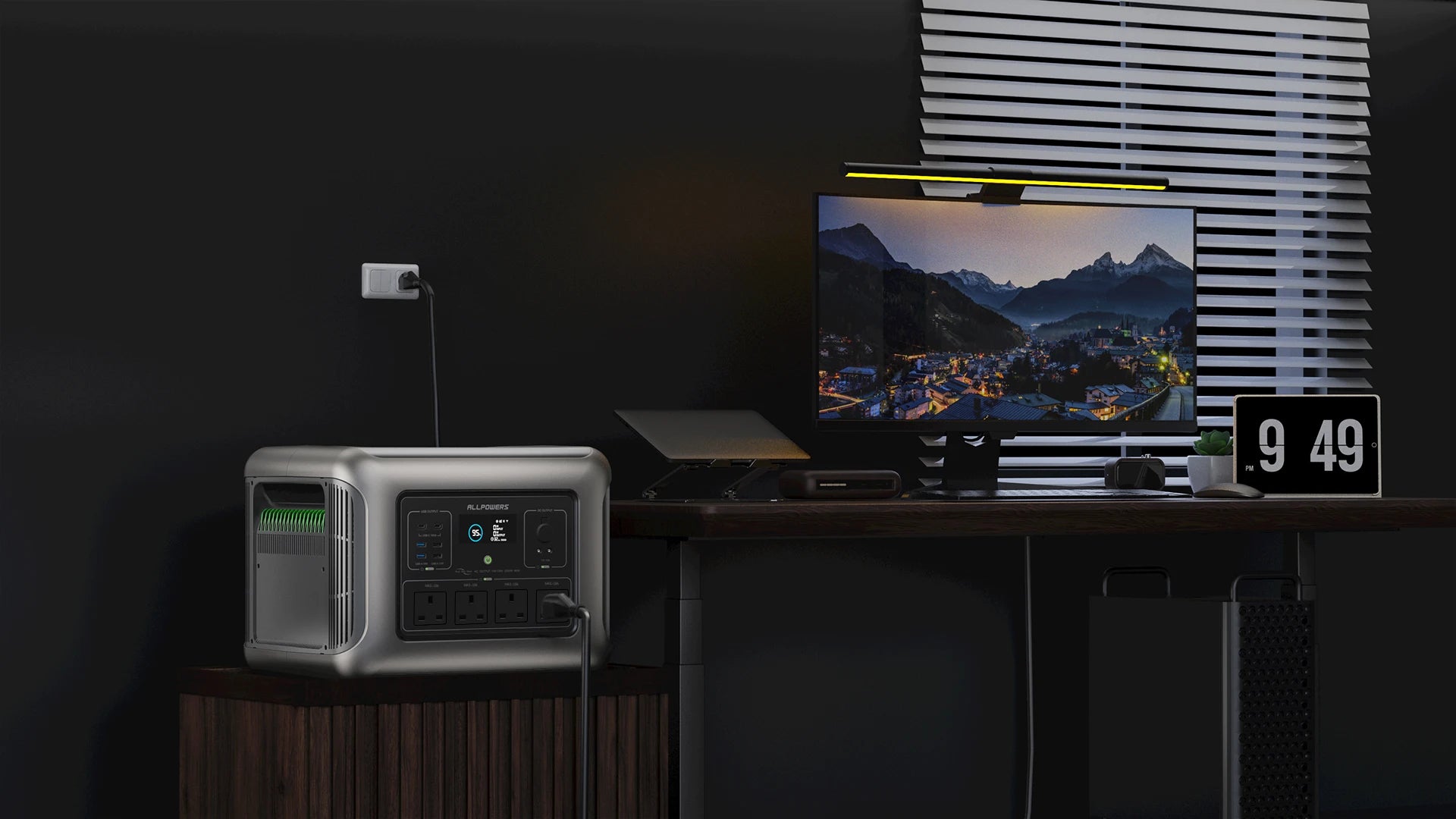

【Smart Control Function & UPS Function】 Easy to realize by connecting with ALLPOWERS APP via WIFI or Bluetooth power monitoring/function setting/remote control. R2500 is equipped with less 15ms UPS to ensure the safe operation of similar CPAP and computers when sudden power failure.

【Warranty & Scope of Delivery】ALLPOWERS R2500 offers you 2 years warranty and friendly customer service. Package Included: 1* ALLPOWERS R2500 Portable Power Station, 1* AC Charging Cable, 1* User Manual.



Capacity: 2016Wh 48V 42Ah

Battery Type: LiFePO4

AC Output: 4x 220-240V / 110-120V  2500W Max (Surged 4000W)

USB-C Port: 2x 5/9/15V⎓3A, 20V⎓5A, 200W Max.
USB-A Port: 2x 5V-2.4A, 12W Max. 2x 5V-3A, 9V-2A, 12V-1.5A, 36W Max.
DC5525/CAR/Anderson Port: 12V-10A, 120W Max.
AC Input: 220-240V / 110-120V 7A, 1500W max.
Solar Input: 12~150V 13A, 1000W Max.
Car Input: 12V/24V DC
Dual Input (AC+Solar): Max. 2000W
Size: 45.6 x 36x 34.6 cm/ 17.95 x 14.17 x 13.62 inch
Weight: 29 kg / 63.93 lbs
UPS: Under 15ms
App Connection: WiFi / Bluetooth

* Multi-Contact 4 port: 25A(max) more current than DC port with only 10A (max).

Faster and safer charging with our advanced technologies.

* Professional and million+ happy users.

* High efficiency conversion rate: up to 22%.

while most of the similar products on the market is 15% or even lower.

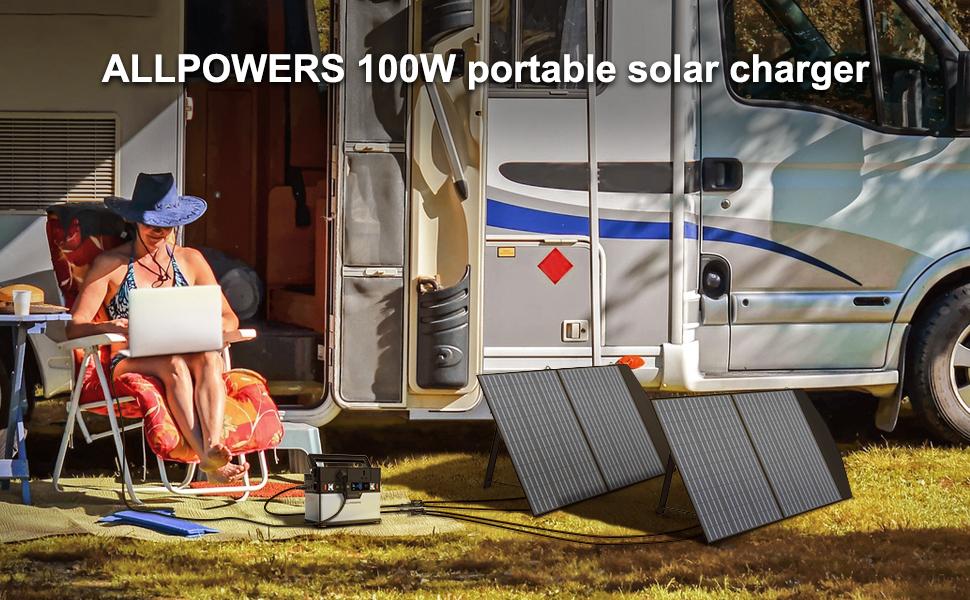

* Whether you're charging a generator phone laptop or refueling a power pack, solar power has you covered. Our foldable portable polycrystalline solar panels are rugged, reliable, and easy to use. Harness the sun with portable solar power wherever you are.



MADE FOR SOLAR GENERATORS：

Compatible with most solar generator/portable power station on the market.

Includes different size of connectors:

* 8mm DC Adapter for Goal Zero/Jackery,

* 5.5 * 2.5mm DC Adapter for Suaoki portable Generator,

* Anderson Adapter for ALLPOWER portable Generator.

Attention:

1. Please check the model, size, voltage and power of your original adapter to ensure compatibility before purchasing the product.

2. This item is solar panel, please put it under strong sunlight, cloudy weather may affect its normal working and power.

Multi-Contact 4 Output can deliver 25A(max)current while the DC port only carry 10A,charging faster and safer with our advanced technologies.

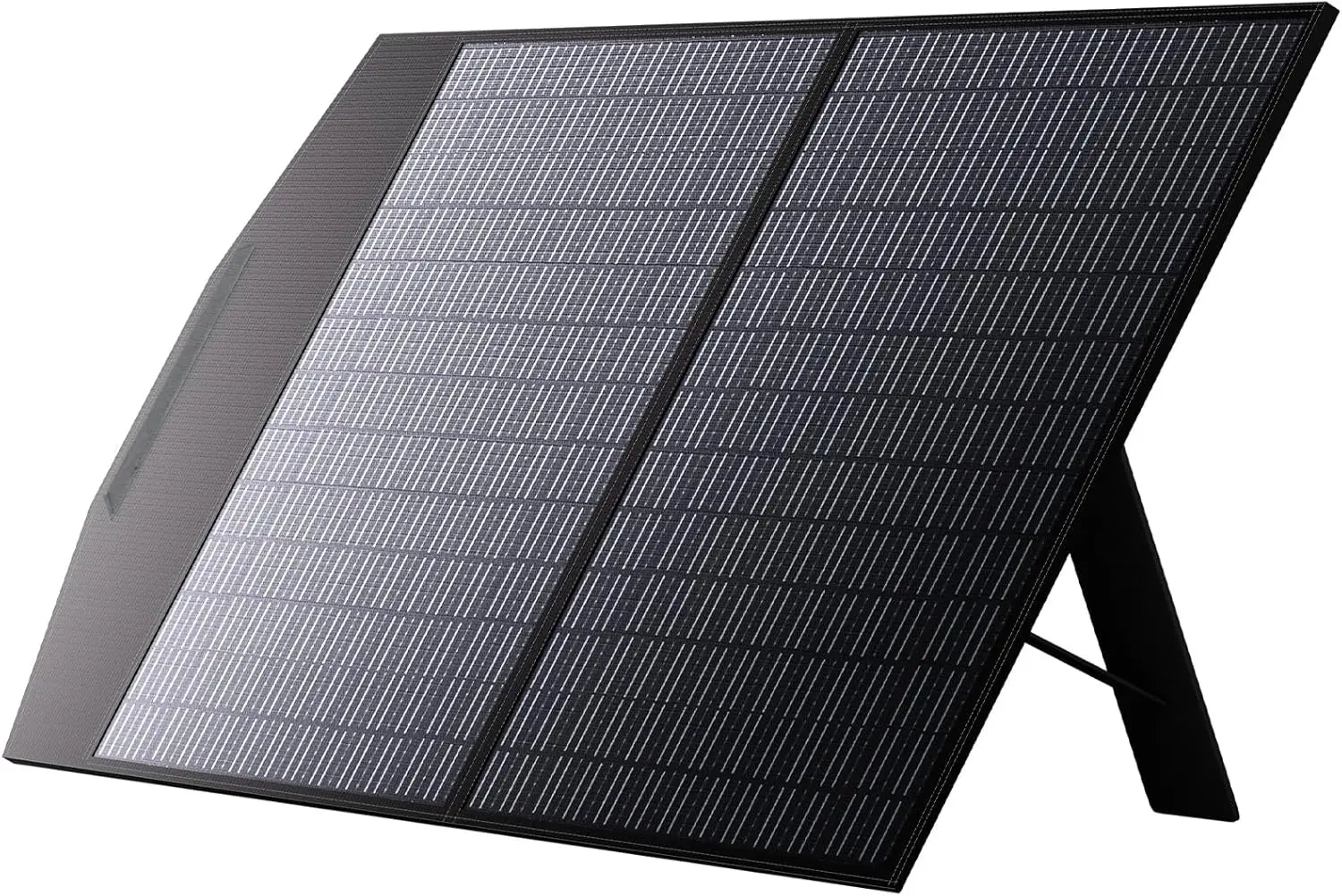

* Peak Power: 100W

* Open Circuit Voltage (Voc): 22.4V

* Short Circuit Current (IOC): 6.0A

* Maximum Power Voltage (Vmp): 18V

* Maximum Power Current (Imp): 5.4A

* STC Irradiance 1000W/m² , TC=25℃, AM=1.5

* Unfolded Size：1220×650×10mm/48×25.6×0.4inch

* Folded Size：510×650×30mm/20×25.6×1.2inch

* Net Weight: 3.6kg/7.9lb

Note: The new version of the 100W solar panel is a monocrystalline solar panel.





The solar panel is equipped with PV-rated, output Multi-Contact 4 cables,The Positive connector is a male connector and the

negative connector is a female connector, these wires by themselves are rated for series connections.

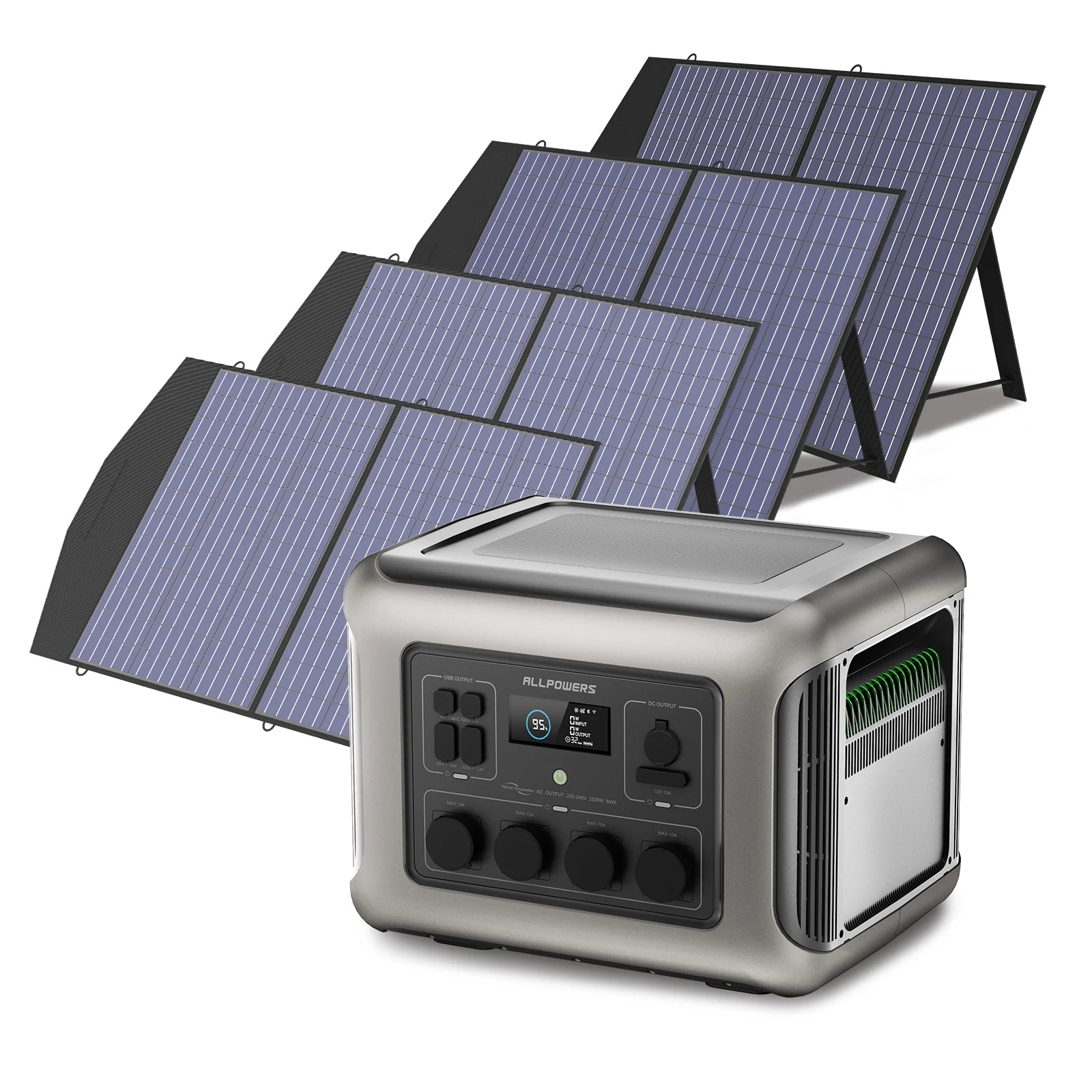

When the solar panels are connected in series (+ connected to -, + connected to-), the voltage is added;

when the solar panels are connected in parallel (+ connected to +,-connected to -), the current is added.

Note: Parallel connection, it need to purchase extra Multi-Contact 4 Y connectors, (Negative to Negative, Positive to Positive)

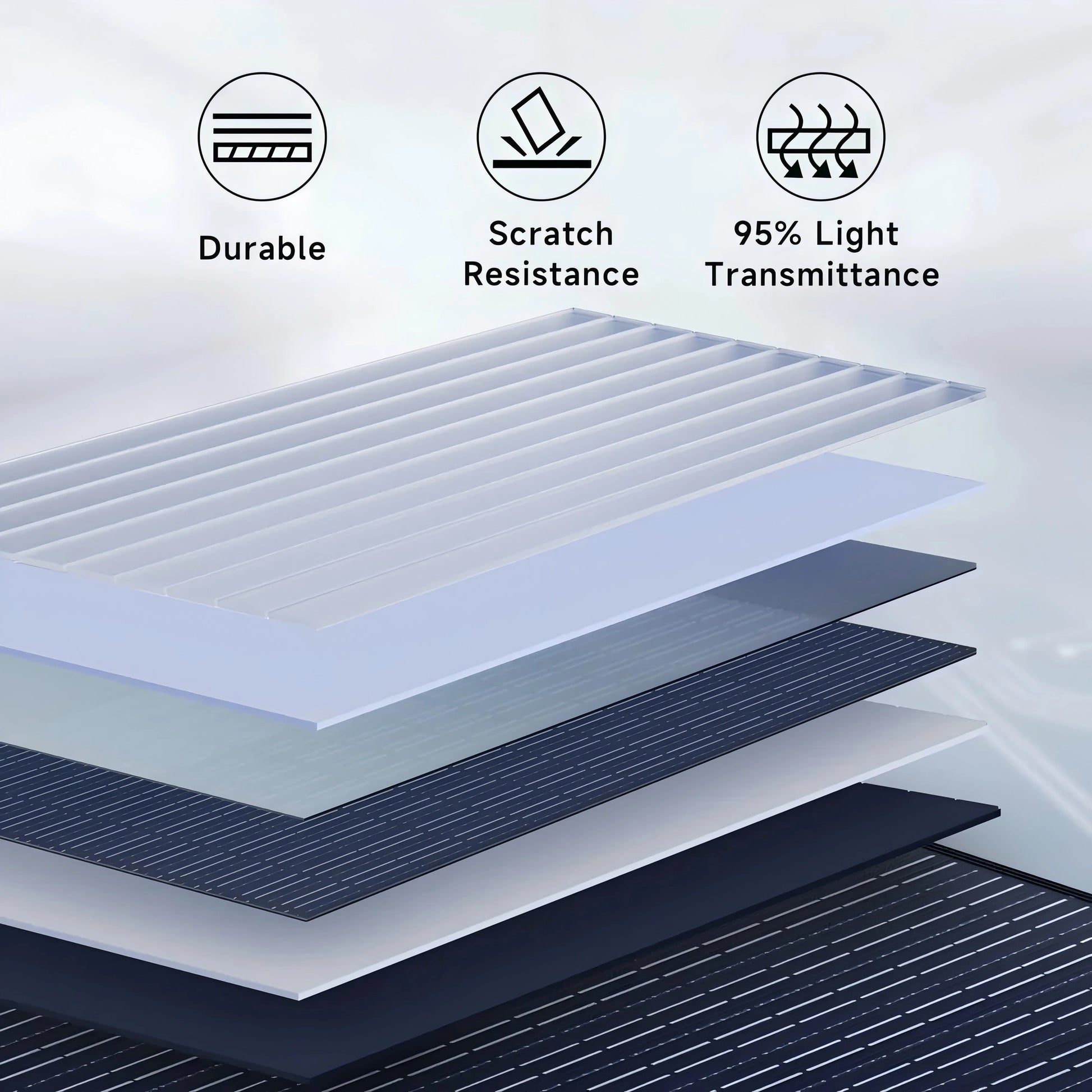

Best Design Compact size design for portability, with adjustable kickstand, slightly adjust the angle with the kickstand, get up to 25% more sunlight than flat laying, great for any outdoor trips.	High Quality 100W foldable solar panel is made from more solid material of good quality, up to 22% efficiency, providing endless joice for laptop and other battery under sun.	Waterproof & Durable Equipped with a rugged water resistant, anti-shock, dust-proof exterior for outdoor use. Can also be affixed to your backup, bicycle or tent when you're out enjoying the great outdoors.	Portable&Compact Portable solar panel can be folded as a briefcase size(510×650×30mm/20×25.6×1.2inch 3.6kg/7.9lb) for easy transport and great for any outdoor hiking or camping.
