SPECIFICATIONS



Battery Capacity(mAh): 1800



Battery Included: Yes

Certification: FCC

Hign-concerned Chemical: None

Is_Display: Yes

Maximum Range: 3km-5km

Model Number: UV-5R+Plus

Output Power(w): 3w-5w

Walkie Talkie Type: Portable

Waterproof / Water-Resistant: No





Specifications



• Channel Step: 2.5/5/6.25/10/12.5/25KHz

• Antenna Impedance: 50Ω.

• Operating Voltage: DC 7.4V.

• Mode of operation: Simple or semi-duplex.

• Dimension(W x H x D): 100 x 52 x 32 mm.

• Weight: 250g （including battery, antenna）.

• Modulation Mode: 16kΦF3E / 11kΦF3E.

• Maximum deviation: ＜5kHz(Wide) / ＜2.5kHz(Narrow).

• Spurious Radiation: ＜7μW.

• Adjacent Ch. power: ≤-65dB(Wide) / ≤-60dB(Narrow).



FCC ID: 2AJGM-UV5R (part 15 & part 97)

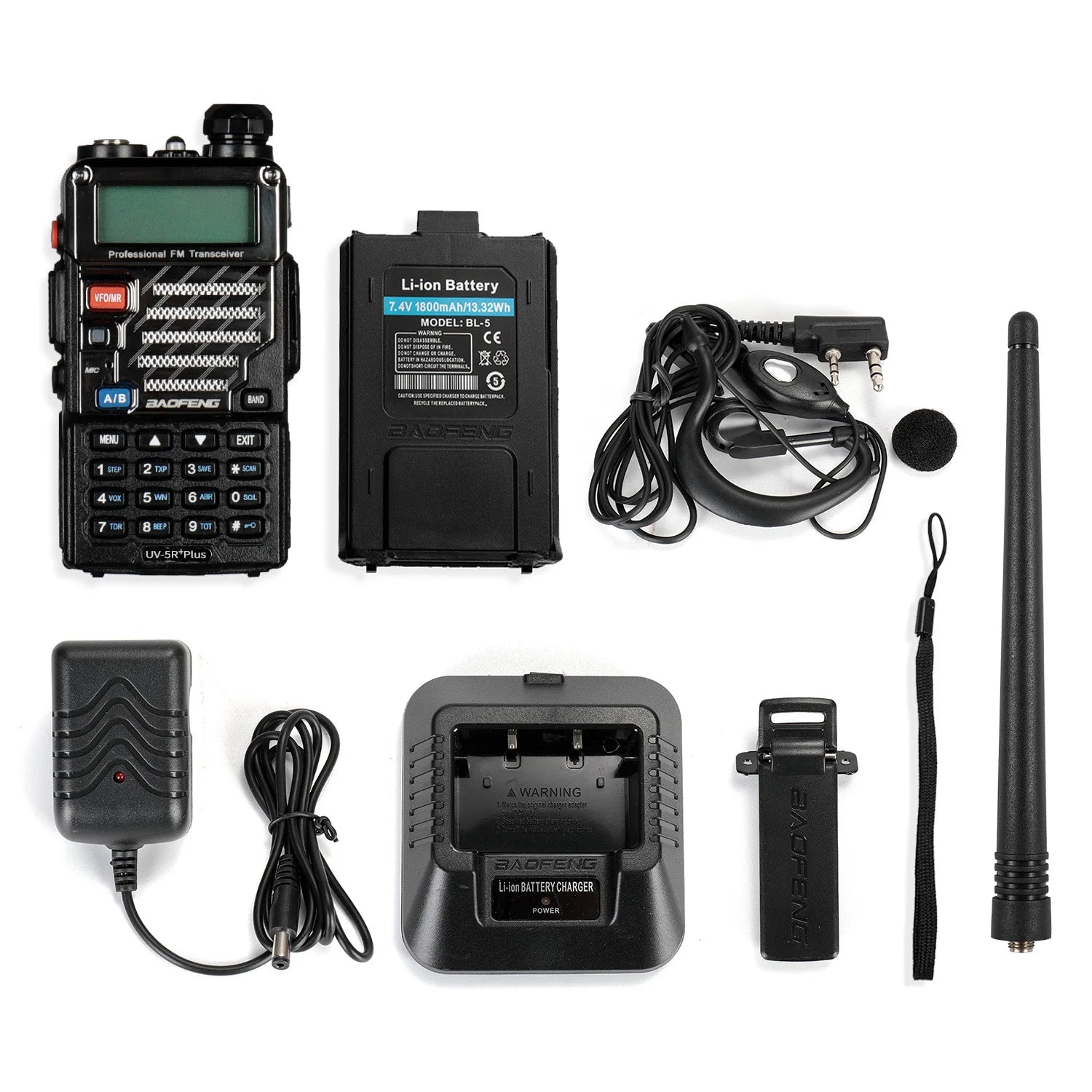

What's in the box?

• 1 x UV-5R Plus

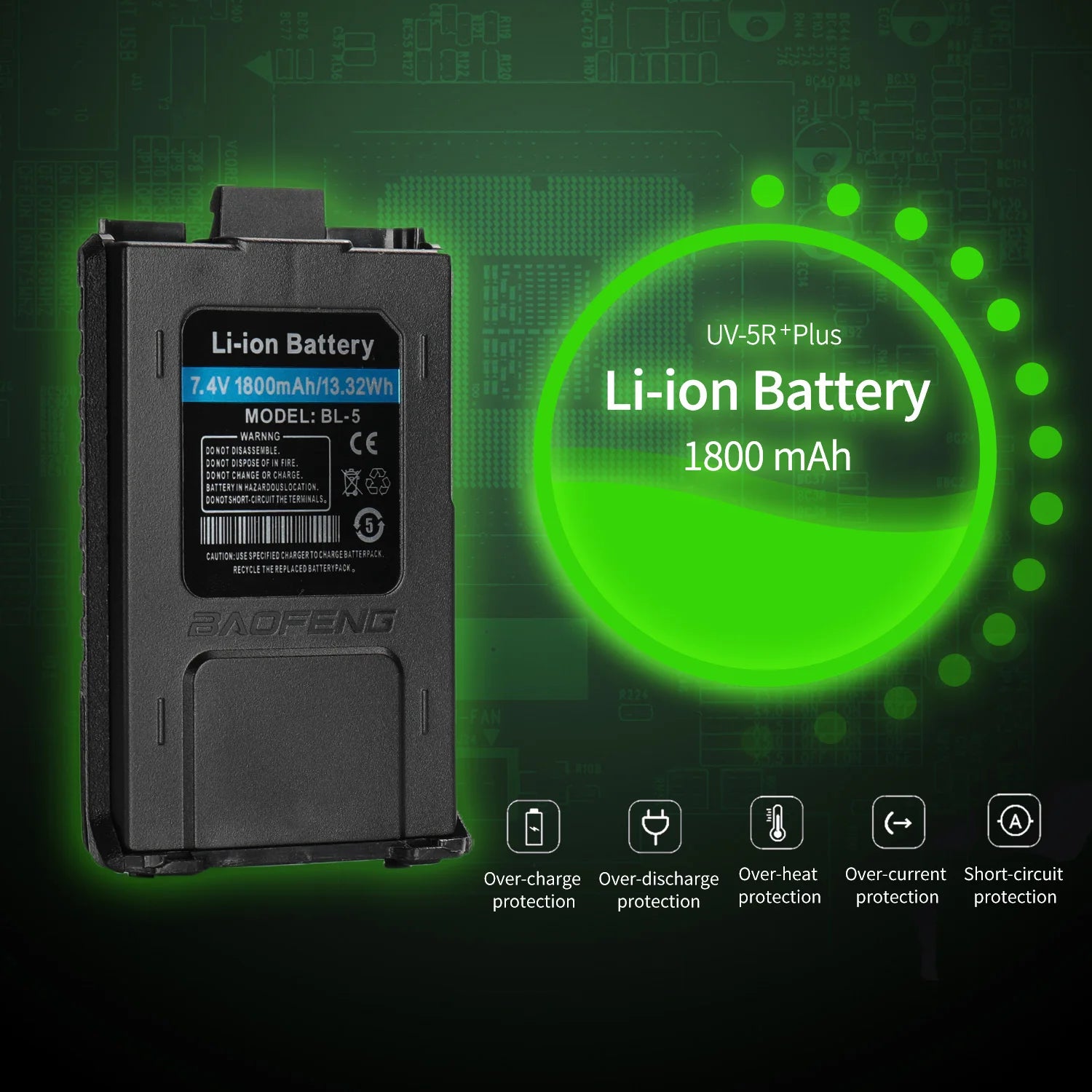

• 1 x 1800mAh Battery

• 1 x Dual Band Antenna

• 1 x Earphone with Mic

• 1 x Belt Clip

• 1 x Hand Strap

• 1 x User Manual

• 1 x Desktop Charger with Adapter(100V ~ 240V)



Feature

• Built-in VOX Function

• Output Power: 5 /1 Watts

• 50 CTCSS and 104 DCS

• Time-out Timer (TOT)

• LED Flashlight

• Emergency Alert

• Hight/Low RF Power Switchable

• Channel Step: 2.5/5/6.25/10/12.5/25KHz

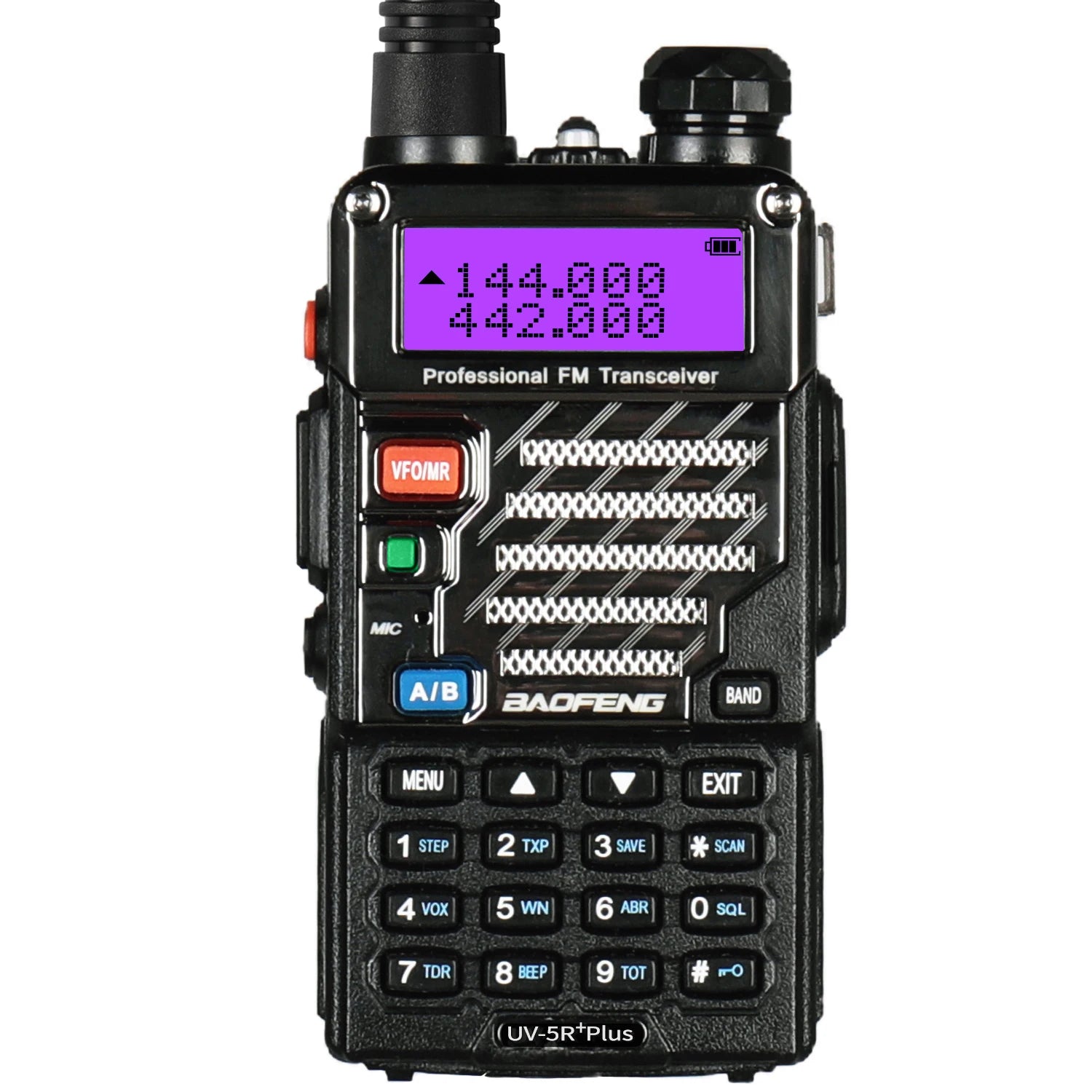

Baofeng UV-5R Plus

UHF/VHF Dual Band Amateur Radio Handheld



• Dual-Band Display, Dual Freq, Dual-Standby

• Classic UV-5R compact design, compatible with UV-5R 3800mAh extended batteries as well as other 5R series accessories.

• Comes with metallic rugged shell, more durable than previous UV-5R and UV-5RA. Cool and perfect for outdoor operation, car racing, off-road trip, emergency rescue, etc.



• Easy to program some basic settings via keypad or connect with PC, support CHIRP and CPS.

• Lightweight and versatile, full HD color LED display, exquisite and clarity.
