SPECIFICATIONS

Hign-concerned Chemical: None

Is_Display: Yes

Material: Plastic

Maximum Range: 5km-10km

Model Number: UV-9R Plus

Walkie Talkie Type: Portable

Waterproof / Water-Resistant: IP67

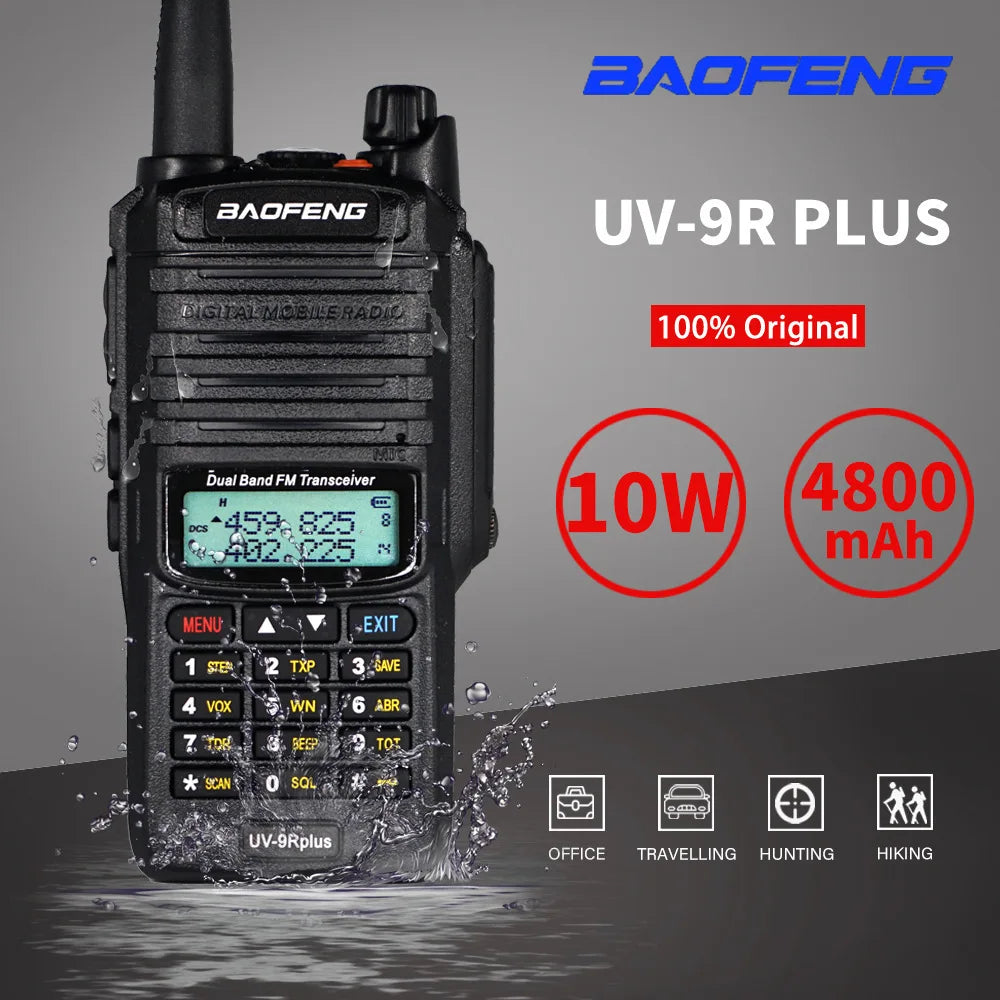

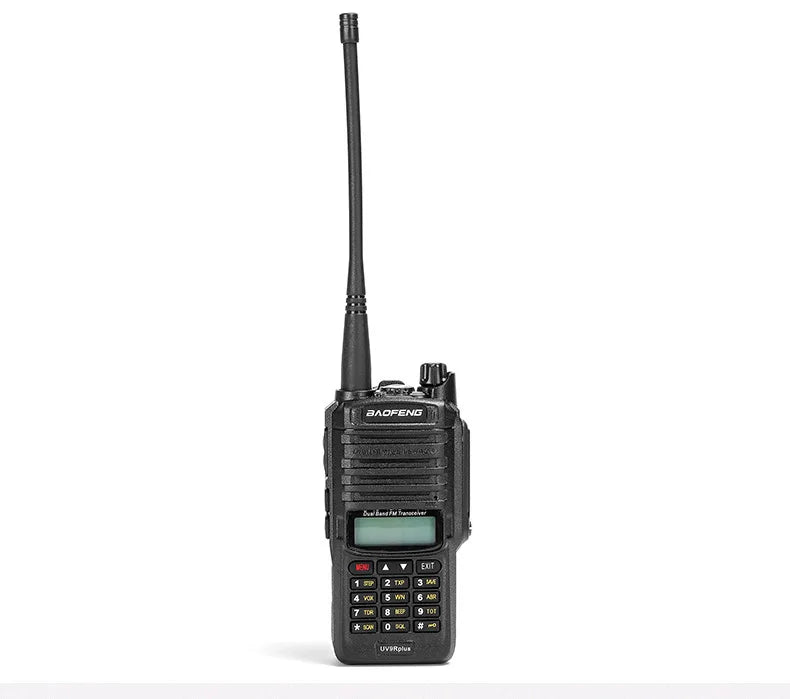

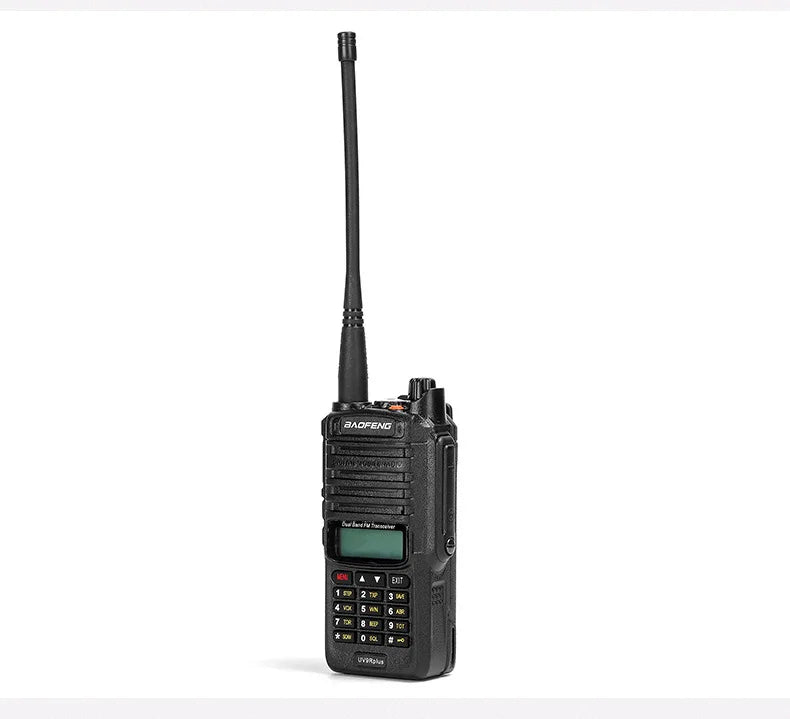

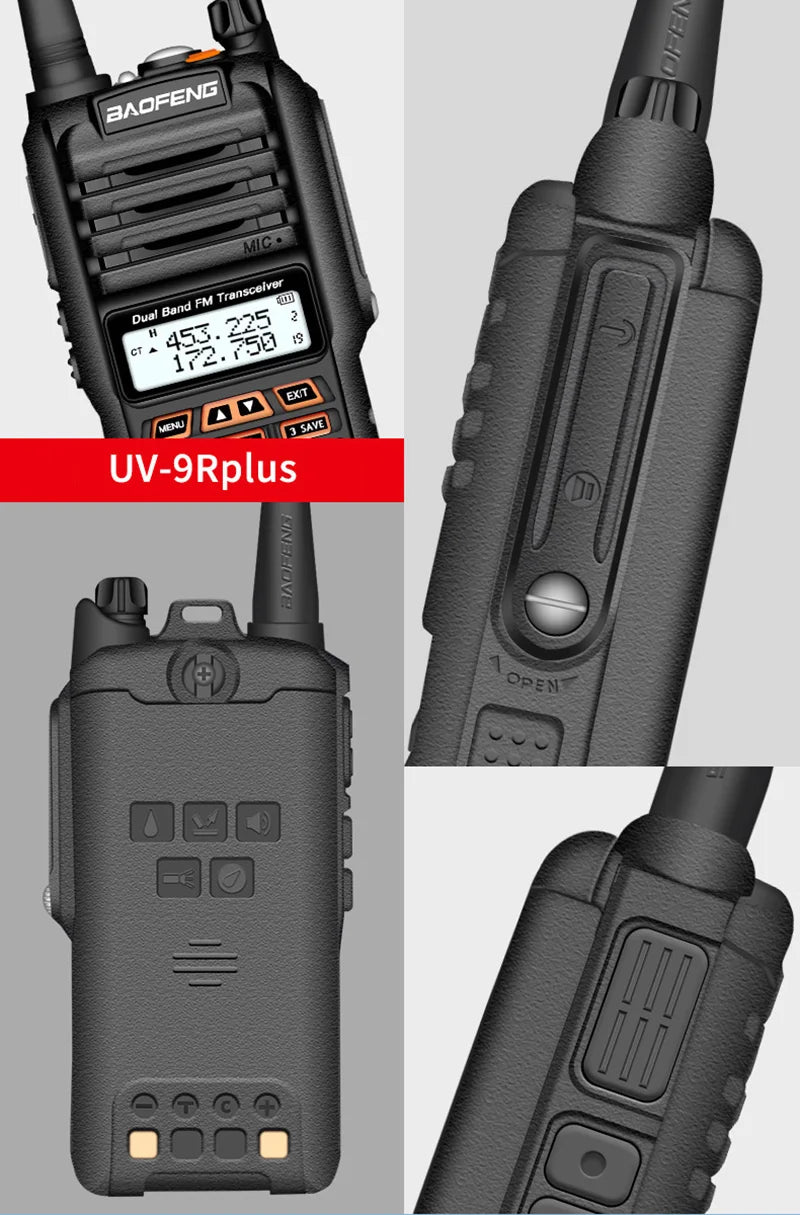

Waterproof Walkie Talkie IP68 Baofeng UV-9R Plus 10km High Power 10W Dual Band Two Way Radio UHF VHF Portable Ham Radio UV9RPLUS

Protable BF-uv9R UV-XR Upgrade version uv-9R plus

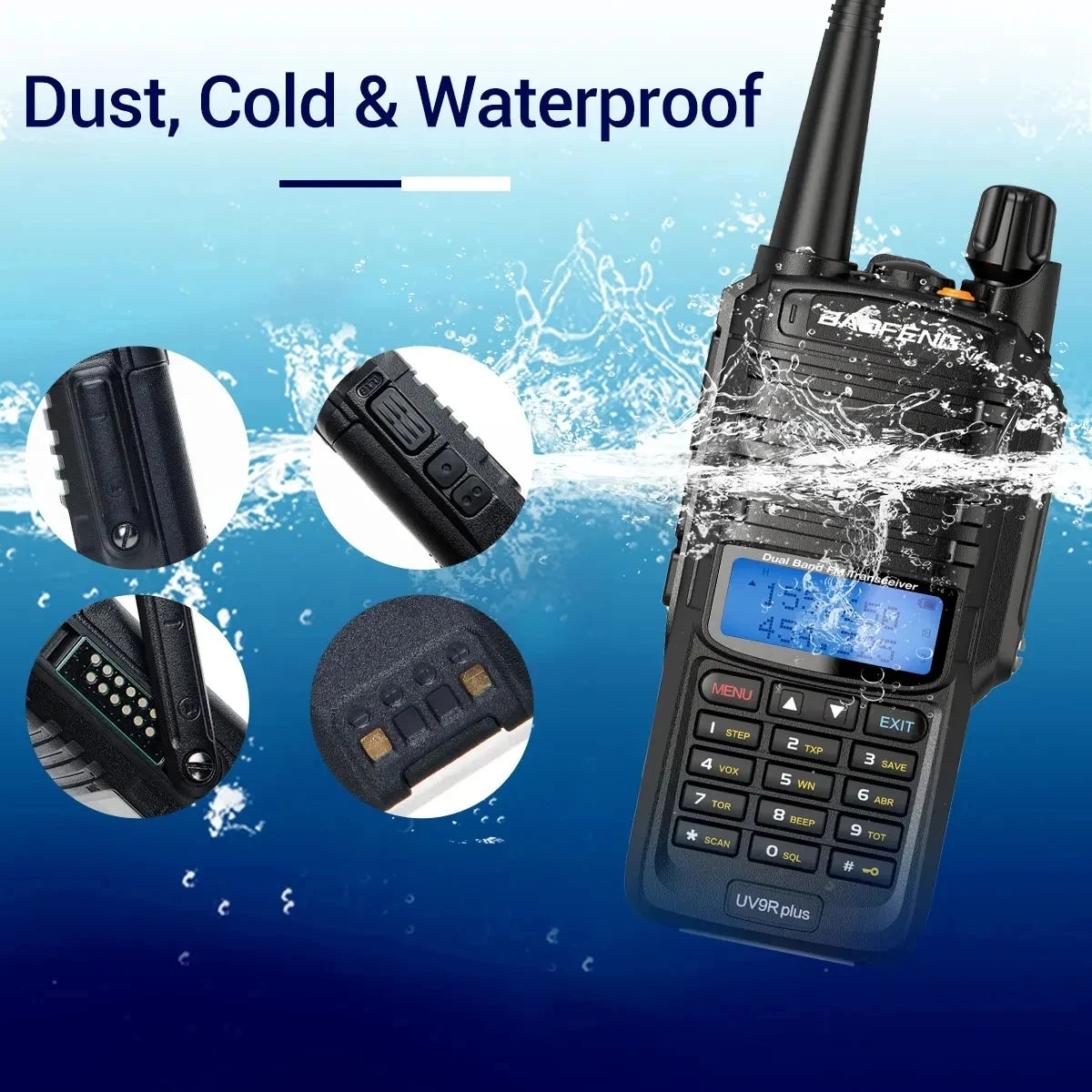

IP67 Waterproof & Dustproof
1-35KM Long range for Complicate using environment
Output Power:High/Mid/low power to choose
Key Feature
1) IP67 waterproof and dustproof (Not diving) 2) Relay Forwarding Confirmed (1750 HZ)

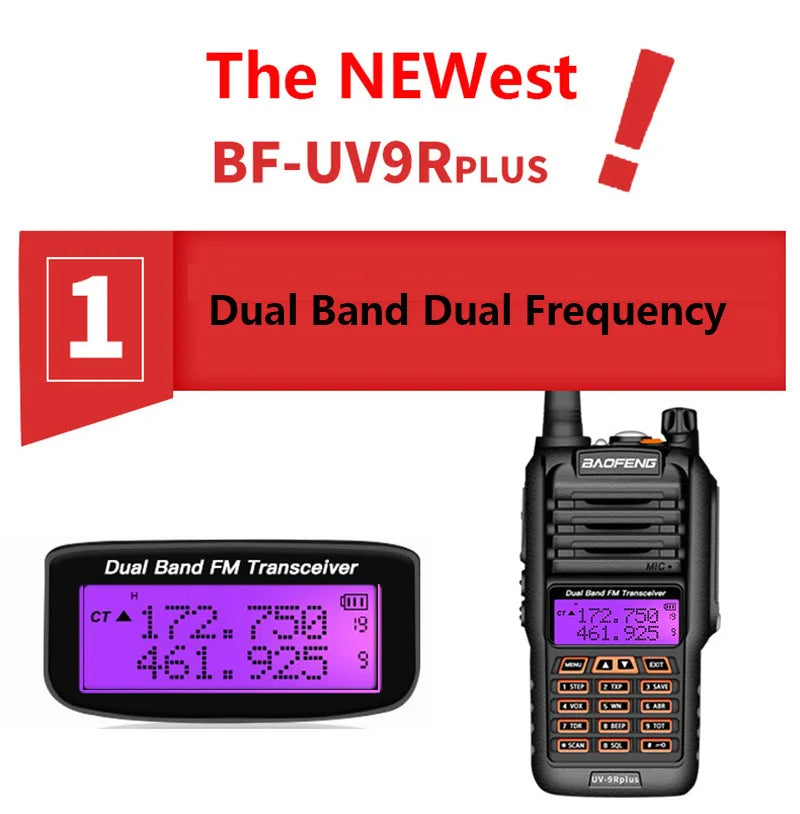

3) Dual Band, Dual Display and Dual Standby 4) High &Low Power Switchover
5) Battery Saving 6) VOX Function , Squelch function
7) Wide/Narrow Band Selection 8) Auto-Back Light
9) Dual Band Standby 10) Time-out Timer (TOT)
11) 50 CTCSS and 104 DCS Codes 12) Voice Prompt
13) ANI Code 14) PC or Manual Program
15) DTMF Code 16) PTT-ID
17) ATUO Keypad Lock 18) Busy Channel Lock Function
19) Low Battery Warning 20) Emergency Alarm
21) Priory Scanning Function 22) U/V Cross Band Dual Watch
General
Frequency Range
VHF:136-174MHz UHF400-520MHz

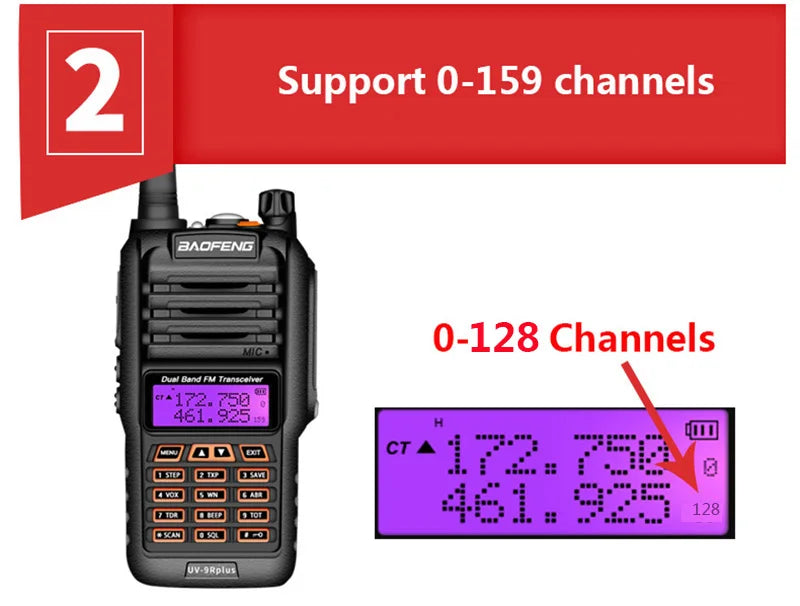

Channel Capacity
128
Channel Spacing
25KHz/12.5KHz
Antenna Impedance
50Ω
Microphone Impedance
600Ω
Operating Voltage
7.4V DC±15%
Frequency Stability
±2.5ppm

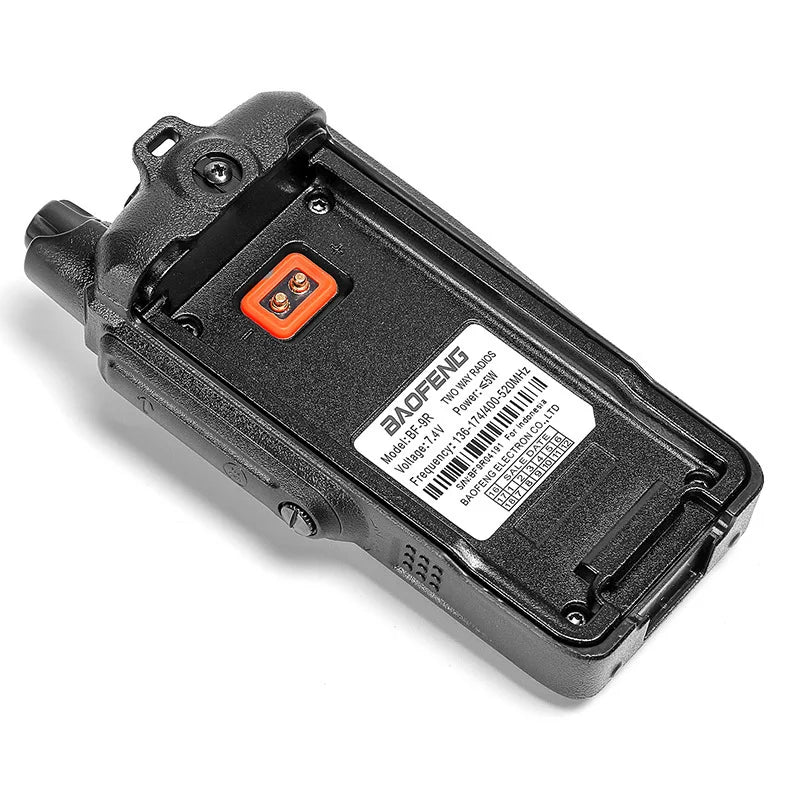

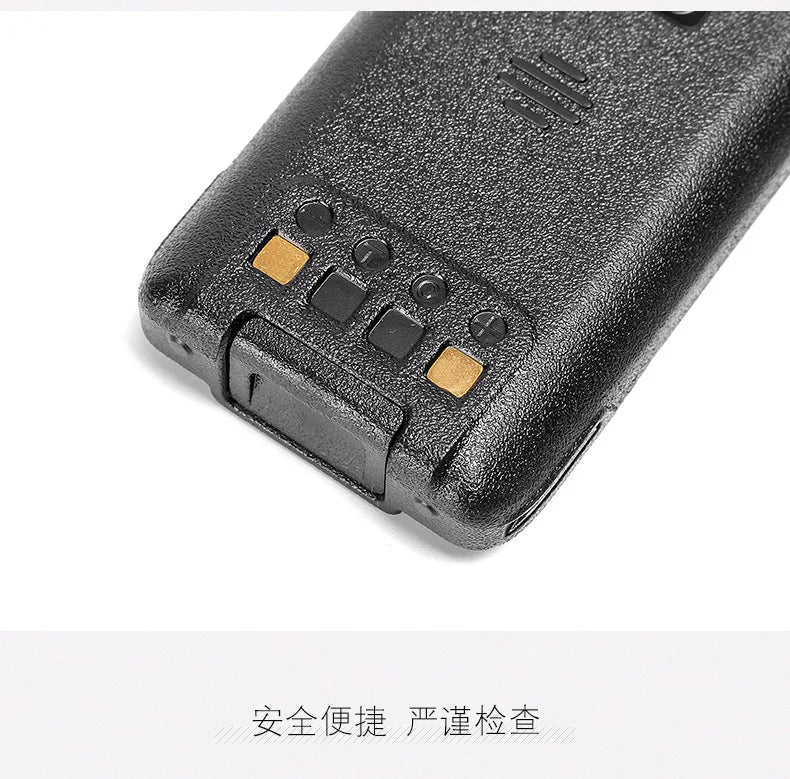

Battery
hiher capacity (Polymer Li-ion)
Compatible With American Military Standard(Mil-STD-810C/D/E)
Transmitter(EIA-RS 316B STANDARD)
RF Power Output
10W/higher power
Modulation Type
Radio (65.0MHz-108.0MHz)
Modulation Sensitivity
<15µV
Modulation Distortion
≤3%
Max Freq Deviation
<5KHz
Occupied Bandwidth
≤16KHz
Modulation Feature
±3dB
Spurious Radiation
≤7.5μW
Adjacent Channel Power
≤-65dB
Receiver
Sensitivity(12db SINAD)
≤0.15μ(12dB S/N)
Squelch Sensitivity
≤0.1μV
Audio Power output
1W/16Ω
Audio Respond
-6
Operation Bandwidth
>5KHz
Co-channel Rejection
≥-8dB
Blocking
≥85dB
Adjacent Channel Selectivity
≥65dB
Standby Current
60mA,15mA
Spurious Rejection
≥60dB
Intermodulation Resistance
≥60dB
